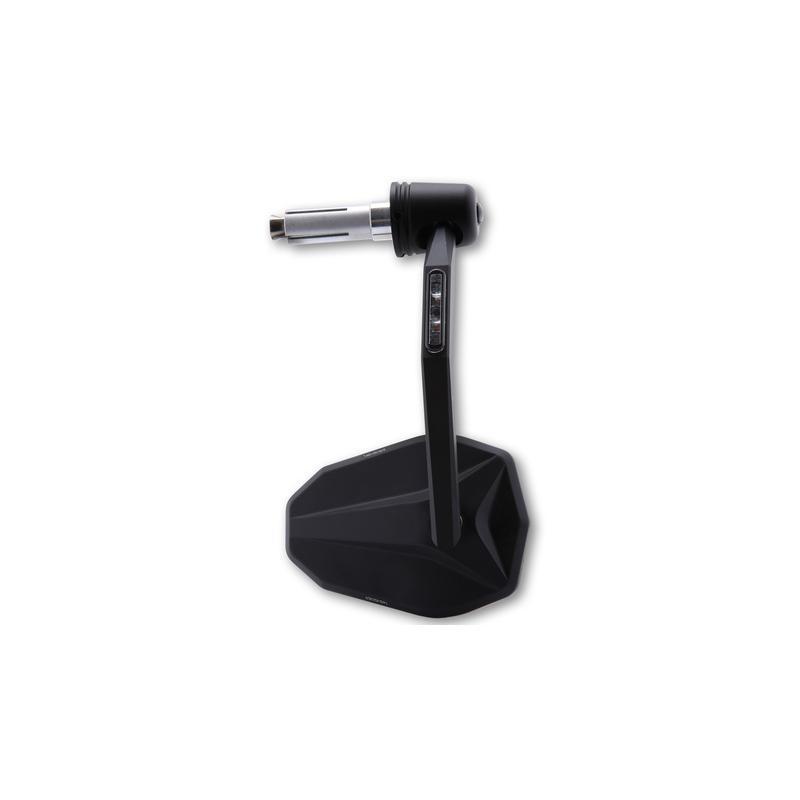

HIGHSIDER 301-127 : HIGHSIDER Victory Blast Bar End Mirror With LED Indicators (1pc)

Victory-Blast Universal Handlebar End Mirror.

Made of aluminium, cut from solid and anodized black with a pearl black satin finish. It is suitable for handlebars with an inner diameter of 12 to 22 mm, i.e. for most 7/8 inch and 1 inch aluminium handlebars.

It is dual Position ( Right or Left position ), the mirror head can be oriented inwards or outwards. E-approved and sold individually. This mirror is only suitable for suspension mounting!
You still need to install 2 pieces, as the indicators are integrated. These replace your OLD turn signals.

Dimensions:

Mirror width (A): 117 mm
Mirror height (B): 83 mm
Width (C): 55 mm
Height (D): 190 mm
Rod length: 75 mm from head to elbow and 70 mm to rod end
Width of mirror arm: 12 mm
Cable length from end of handlebar: 900 mm

Connections:
Yellow cable = flasher (+)
Black cable = ground (-)

Power consumption: 12.5 V / 0.11 A / 1.35 W

Scope of delivery:

1 clamping sleeve each with D 12 mm and D 16 mm
1 spacer sleeve each with D. 14 mm, D. 18 mm and D. 22 mm
1 x centre screw M6
1 x conical nut M6
1 x black plastic cap
