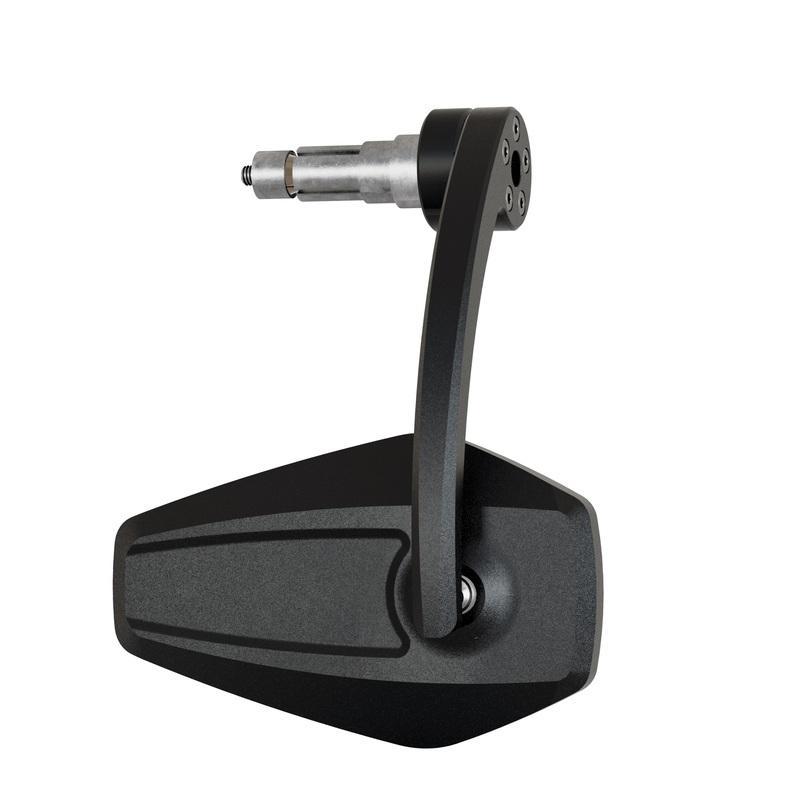

SHIN YO 301-149 : SHIN YO Booster 2 Evo Handlebar End Mirror (1pc)

SHIN YO BOOSTER 2 EVO handlebar end mirror, E-approved.

Corners and edges are the trademark of the SHIN YO BOOSTER. The EVO versions have a new stem shape and are supplied with a mounting kit. Suitable for handlebars with an inner diameter of 12 to 22 mm, thus for most 7/8 and 1 inch aluminium or steel handlebars. The mirror can be mounted on the right or left, upright or hanging downwards. To convert, just loosen the five M4 bolts and reattach the intermediate adapter on the other side.

Dimensions:

A Width head: 130 mm

B Height of head: 86 mm

C Total width: xxx mm

D Total height: xxx mm

Weight: xxx kg

Scope of delivery: 1 piece incl.

1 clamping sleeve each with Ø 12 and 16 mm

1 spacer sleeve each with Ø 14, 18 and 22 mm

1 x M6 x 1.0 mm central screw hexagon socket

1 x M6 conical nuts
