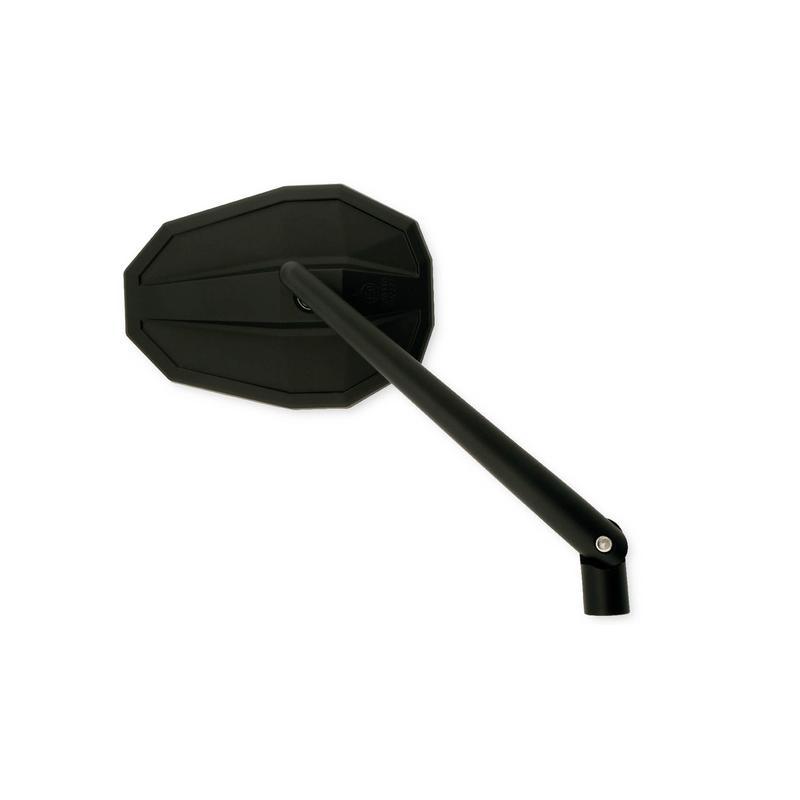

SHIN YO 301-173 : SHIN YO Straight Mirror (1pc)

SHIN YO STRAIGHT mirror, E-approved

The rearview mirror housing is molded in plastic and a corrosion-resistant stainless steel ball clamp allows precise adjustment of the lightweight mirror in a trendy design. The mirror head is supported by an aluminium arm, which is screwed into the handlebar fitting in the classic way. The screw connection with the handlebar fittings is made via an adapter (M10x1.25) and is therefore suitable for most models on the market. For Yamaha models with left-hand thread, a corresponding adapter is included. Can be used for left and right side.

Dimensions:
A Width head: 120 mm
B Height head: 85 mm
C Total width: 185 mm
D Total height: 160 mm
Stem length: 144 mm, joint 33 mm
Blind hole: M8 x 1.25 mm
Adapter: M10 x 1.25 mm

Scope of supply: 1 piece incl. Yamaha adapter with left-hand thread.
