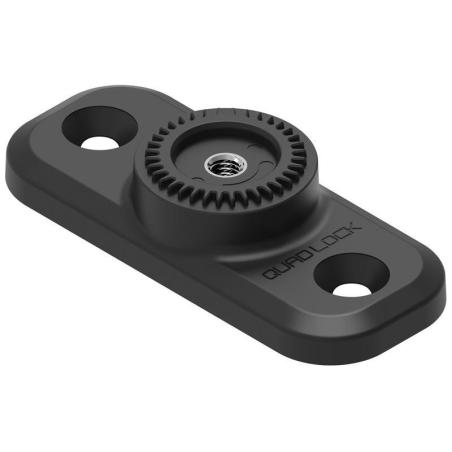

QUAD LOCK QLP-360-F2H : QUAD LOCK 360 2 Holes Rectangle Base

Securely fix your mount to flat surfaces using one of our Rectangle Flat Hole Bases.

Choose between a 2 hole or a 4 hole base.

Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.

Each base uses the universal AMPs hole spacing standard and the holes will accept 10G or M5 countersunk fasteners. If using the 4 hole base, we recommend using all 4 hole screws for the strongest connection.

A 10mm Spacers and x2 screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

Both Rectangle Bases are built with tough, nylon and use the universal AMPs hole spacing standard.

The holes will accept 10G or M5 countersunk fasteners.

2 Hole Base

• 68.5mm (2.7") long x 28mm (1.1") wide x 14mm (0.55") high


• AMPS Hole Pitch: 48.5mm (1.9")

• 1 x Flat Rectangle 2 Hole Base


• 1 x 10mm Spacers


• 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)


• 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)
