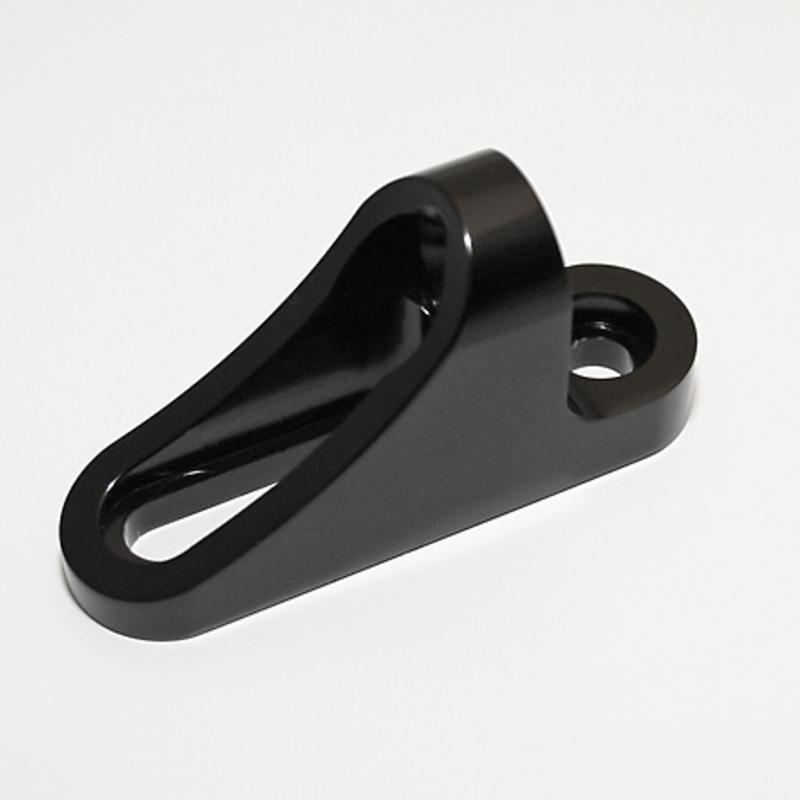

HIGHSIDER 304-020 : HIGHSIDER Fairing Mirror Universal Adapter - Short (pair)

HIGHSIDER universal adapter, short

Black anodised universal adapter made of aluminium for attaching fairing mirrors, e.g. to the fairing. The short version is suitable for fairing mirrors with the part numbers 1108363, 1108368, 1108384, 1108395 and 1108397.

Dimensions:
Overall length: 60 mm
Width: 18 mm
Screw hole spacing: 20 mm - 42 mm

Scope of supply:
2x universal adapter black anodized (L 59,6 x W 18 mm)
2x flat head screw M6 hexagon socket (for mounting the handles)
4x M6 x 10 mm hexagon socket screw stainless steel
4x M6 x 15 mm hexagon socket screw stainless steel
4x M6 x 20 mm hexagon socket screwScrew stainless steel
4x M6 x 25 mm hexagon socket screw stainless steel
4x M6 x 30 mm hexagon socket screw stainless steel
4x M6 self-locking nut
4x washer, Diameter: 11.8 x 6 x 1.4 mm
4x bush, diameter: 9.8 x 6 x 1 mm
4x bush, diameter: 11 x 6 x 9.7 mm
4x bush, diameter 10.5 x 6 x 7 mm
