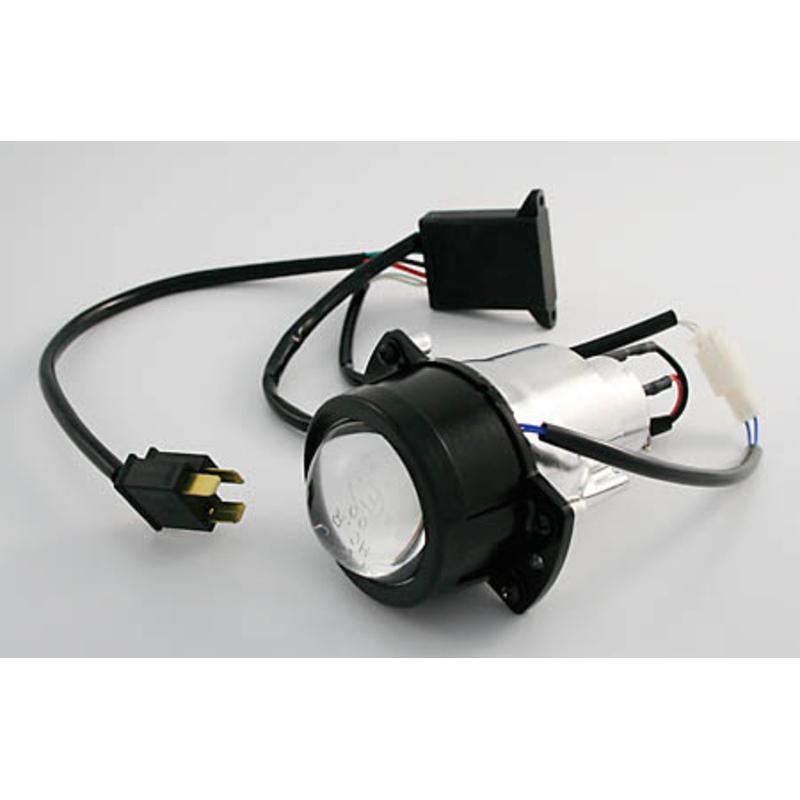

SHIN YO 223-390 : SHIN YO Ellipsoid headlamp 50 mm With Cover For High Beam And Low Beam, H1

SHIN YO ellipsoid headlamp
This headlamp has no parking light function but a magnetically controlled aperture which changes between high and low beam. Integrated holder with two 5 mm holes. Both light functions are E-approved.

Dimensions:
Lens diameter 50 mm
Lens height 20 mm
Frame diameter outer lens 67 mm
Housing length with lens approx. 123 mm
Installation depth approx. 100 mm
Width Bracket: 93 mm
Lamp: H1 55 Watt

Supplied: 1 piece

Accessories:
Optional LED parking light Art. no. No. 223-325 or 223-327 can be used.
