HIGHSIDER 223-147 : HIGHSIDER 7 LED Headlight Reno Type3"

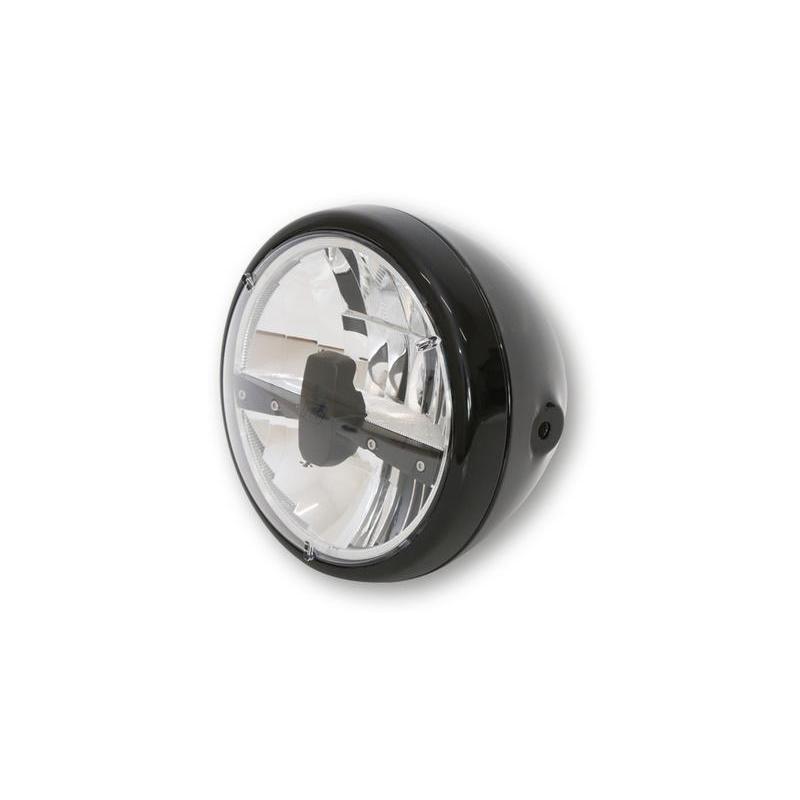

HIGHSIDER Reno Type 3 Headlight LED, 7 inch, metal housing, clear glass, side mounting, E-approved.

Innovative power LED headlight with parking light function and clear glass. The oval metal housing has a chrome-plated, asymmetrical reflector - only approved for right-hand traffic - E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight every time!

Headlight dimensions:

• Housing diameter: 200 mm


• Headlight insert diameter: 178 mm


• Housing depth: 160 mm


• Distance between mounting holes (centre - centre): 170 mm


• Distance of fixing hole (centre) to end of housing: approx. 90 mm


• Mounting: laterally with M8 threaded bolts

Connections:

• White cable = low beam (+)


• Blue cable = high beam (+)


• Green cable = ground (-)


• Grey extra cable = LED position light (+)


• Black extra cable = ground (-)

Scope of delivery: 1 piece, including 3-pin mating connector

NOTE: Use asymmetrical, only approved for right-hand traffic.
