HIGHSIDER 223-157 : HIGHSIDER LED Spotlight British-Style Type4

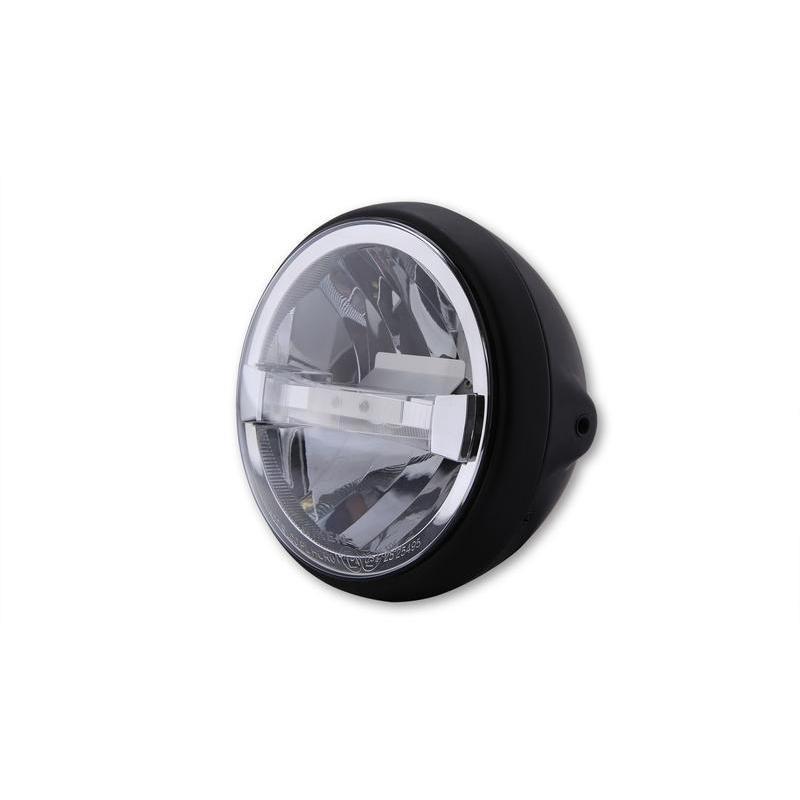

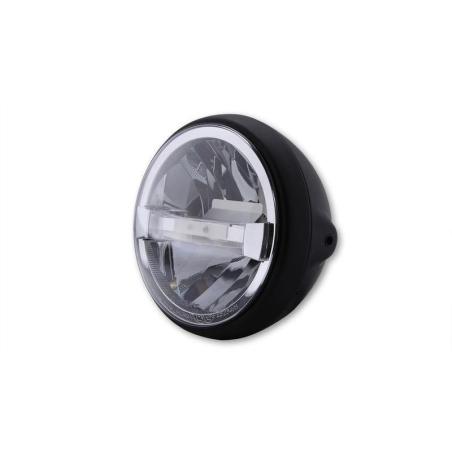

LED HIGHSIDER British-Style 7'' Type 4 with TFL, metal housing, clear glass, round, side mounting, E-marked.

Puristically shaped headlight with metal housing for lateral mounting. The simple design is ideal for classics, roadsters and customized bikes.

The chrome-plated reflector with clear glass also has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created – the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux – only approved for right-hand traffic -, E-examined.

Dimensions:

• Housing diameter (hole spacing at the same time): 190 mm


• Heating insert diameter: 178 mm


• Housing depth: 140 mm


• Distance between mounting holes – Housing front edge: approx. 47 mm


• Distance between mounting holes – Housing end: approx. 80 mm


• Diameter Cable guide: 35 mm

Fixing: lateral with M8 threaded bolts

Connections:

• Black cable = ground (-)


• Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W


• Yellow cable = high beam (+), power consumption at12V: 1,3A, 13W

TFL:

• Black cable = ground (-)


• Red cable = daytime running light (+), power consumption at 12V: 1,2A, 14W


• White cable = position light (+), power consumption at 12V: 0,2A, 2,4W

Scope of supply: 1 piece incl. 3 pin connector

Optional available: headlight insert TYPE 4, chrome, art. no.No.: 1108027

Notes:

• Use asymmetrical, approved for right-hand traffic only.


• The enclosed 3-pole standard plug must be installed by the customer after reflector installation.

View of plug contacts:

• Driving light (yellow) = right-hand


• Dipped beam (blue) = top


• ground (black) = left-hand
