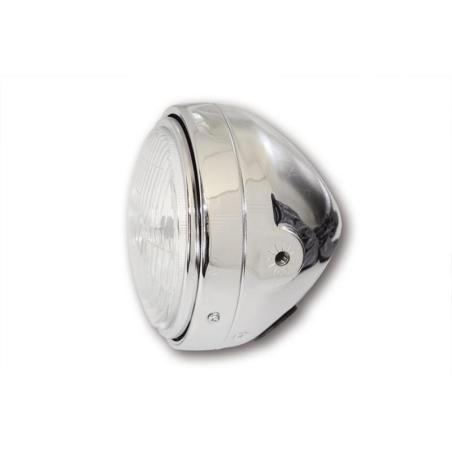

SHIN YO 223-015 : SHIN YO Headlight 5-3/4 Corrugated Glass Chrome"

SHIN YO 5 3/4
' headlight with sidelight for side mounting,
H4 headlight in a matt black metal housing with adjustable inner ring and ribbed glass. The headlamp has an asymmetrical reflector and parking light, E-approved, approved for right-hand traffic only.

Dimensions:
Casing diameter: 165 mm
Overall depth including curved glass: 145 mm
Fixing: lateral mounting M8
Casing depth: approx. 75 mm (centre of lateral fixing holes to the rear).
Lamps: H4, 12V 60/55 W

Connections:
Black cable = ground parking light (-)
Brown cable = parking light (+)
White cable = dipped beam (+)
Blue cable = high beam (+)
Green cable = ground (-)

Scope of supply: 1 piece consisting of headlight and light source

spare parts:
spare part insert: Art.-No. 226-130
Replacement bulb: 209-101 & 209-105

Notes: Asymmetrical reflectors are only permitted for right-hand traffic.
