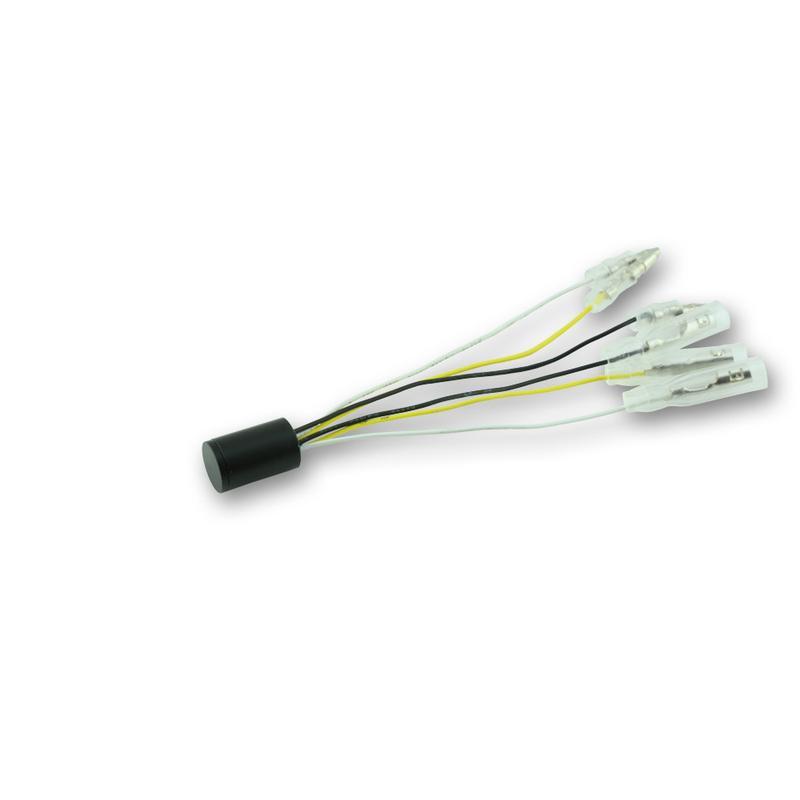

HIGHSIDER 208-109 : HIGHSIDER PL Control Box CB2 For 2in1 Indicators

HIGHSIDER PL control box CB2 (reverse polarity protected)

In just a few steps, the control bos is inserted between the 2 in 1 turn signals / position lights and now provides the optical highlight during the flashing process. This is because the position light now switches off when the indicator is switched on and only switches on again when the flashing process has finished. This means that both the position light and the indicator are used independently of each other.

Dimensions:
Diameter: 11 mm
Length: 17.5 mm

Application:
IN (from main wiring harness)
Yellow = flasher (+)
White = position light (+)
Black = mass (-)

OUT (to flasher/PL)
Yellow = flasher (+)
White = position light (+)
Black = mass (-)

Scope of supply:
1 pair
Internal mounting instructions

Note:
Not suitable for headlights with position light.
