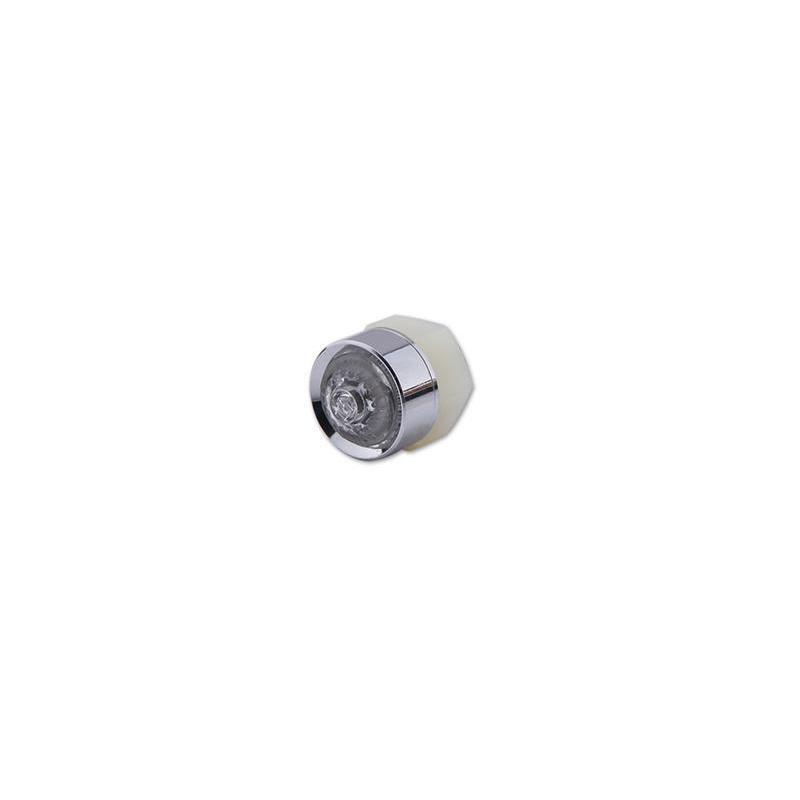

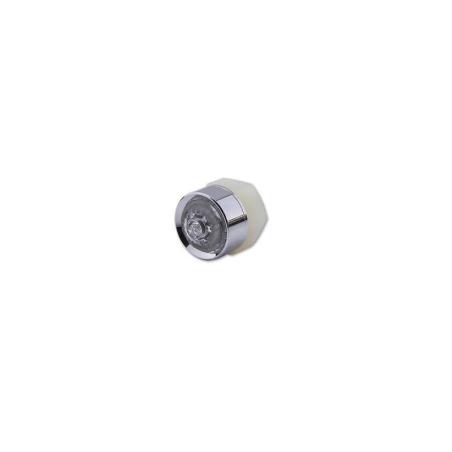

HIGHSIDER 255-016 : HIGHSIDER LED Taillight Unit Mono

HIGHSIDER LED taillight unit MONO, clear lens, chrome plated or black, dia. 18 mm, E-marked.

Taillight with a power LED and clear glass, embedded in a round aluminum housing, E-approved.

The HIGHSIDER taillight and taillight/indicator series will be seen with certainty to give you the safety you need and the look you want whether cruiser, scooter or speedster.

Measures:

• Diameter: 18 mm


• Height: 8 mm


• Attachment: Threaded bolt M10 x 1.5 mm,


• length: 13 mm and nylon nut.

Power consumption at 12.5 volts:

• Taillight = 0,02 Ampere


• Brakelight = 0,13 Ampere

Connections:

• Black cable = Ground (-)


• Yellow cable= Taillight (+)


• Red cable = Brakelight (+)

Supplied with: 1 piece, housing color selectable.

Optionally available: Matching LED indicators: Part No. 1108571001 (203-215)
