HIGHSIDER 208-108 : HIGHSIDER CB1 DRL Control Box - Switching Daytime Running Light

Daytime running light control box for vehicles without light switch

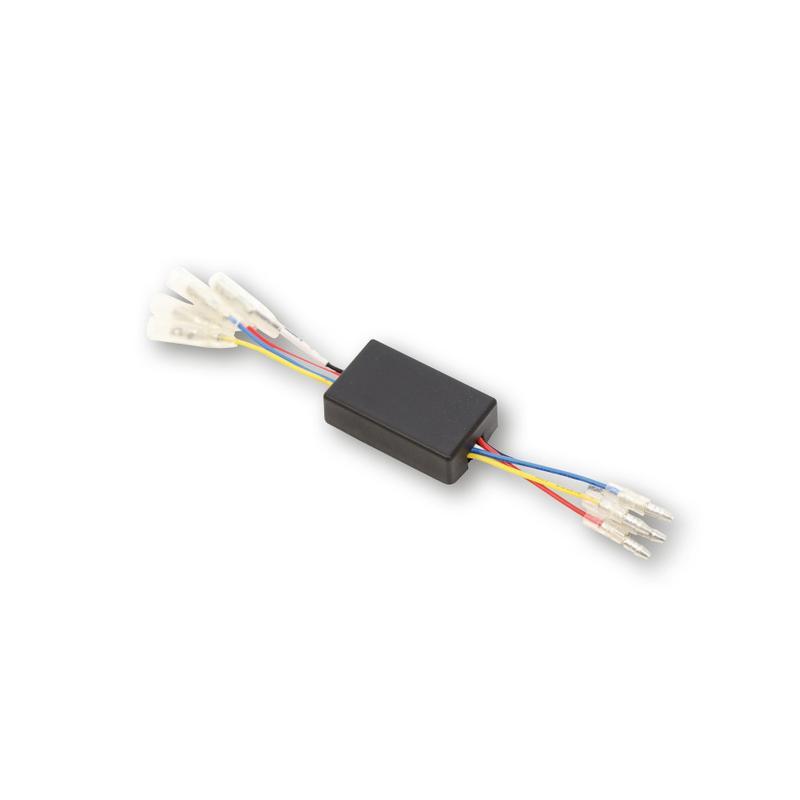

By installing the DRL CONTROL- BOX CB1 is the correct circuit between daytime running light and the front lighting on the vehicle given. According to the regulations, the daytime running lights must be connected in such a way that they switch off automatically when the main headlights are switched on. Since the main headlight is always on in vehicles without a light switch, the daytime running light function would not be usable correctly.

The BOX is suitable for LED and conventional headlights and is installed between the main headlight with integrated or separate daytime running light and the vehicle's electrical system. The function of the parking light that is switched via the ignition lock when the vehicle is parked is fully functional.

Dimensions
Length: 48 mm
Width: 28 mm
Height: 14 mm

Employment:
IN (vehicle electrics):

• Yellow = high beam (+)


• Blue = low beam (+) ON / OFF switch between


• White = parking lights (+)


• Red = ignition 15 (+)


• Black = ground (-)

OUT (headlights)
Yellow = high beam (+)
Blue = low beam (+)
Black = ground (-)

To the daytime running lights:
White = parking light (+)
Red = daytime running light (+)

Optional accessories:
Light switch On/Off

NOTE:
A separate ON and OFF switch for the DRL CONTROL-BOX is also required (not included).
The rear tail light must always remain switched on, i.e. set to ignition plus.
