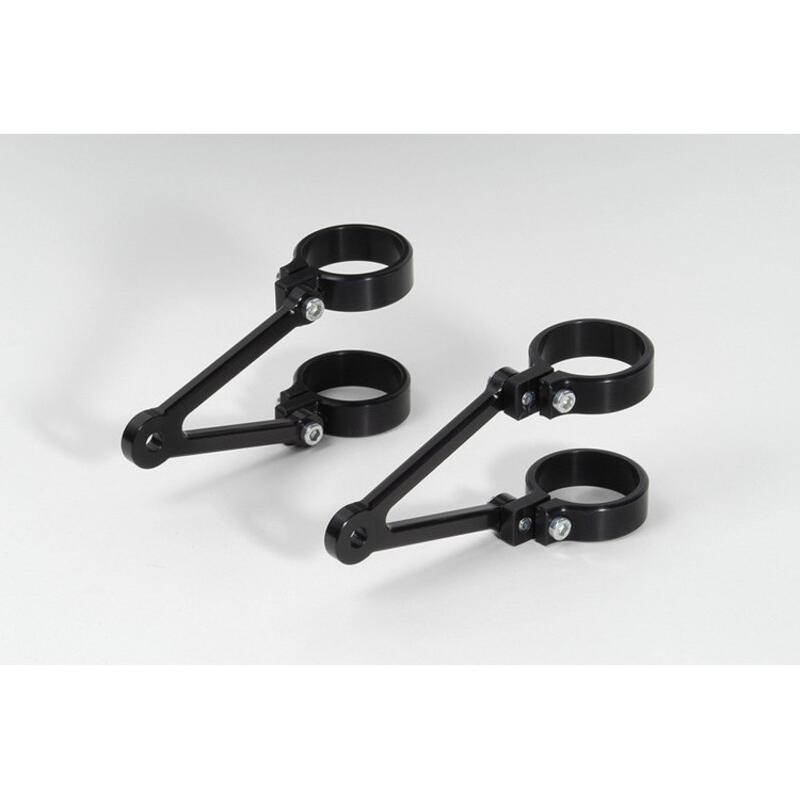

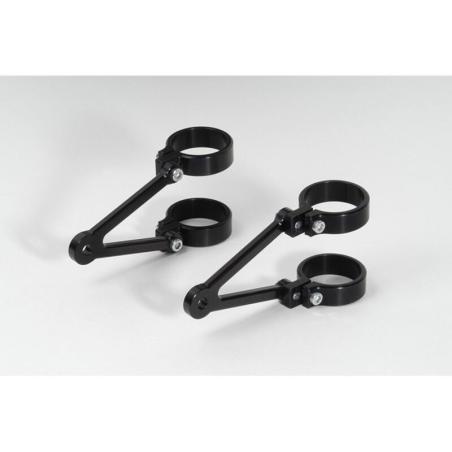

LSL 143LT59 : LSL Headlight Bracket (Without Indicators Support) 59mm

Lamp holder for single headlamp, aluminium

LSL offers universal mounting kits for individual headlight conversions.
Precisely crafted lamp holders in a class of their own that visually complete the headlight conversion on your cruiser, chopper or naked bike.
The brackets are available in different diameters from 35 to 59 mm for common bikes.
The struts are available in different lengths, choose the variant that suits your vehicle. (LONG, SHORT or EXTRA SHORT)
The Long Variant is also available without indicator mount.
Clamps and struts of the LSL lamp holders are milled from aluminium and weatherproof anodised.
The aluminium clamps have a width of 17 mm.
Due to a lateral offset of the contact surfaces, a difference of 20 mm can be compensated for when mounting the lamp struts.
This means that they can also be used with different fork widths or lamp sizes.
As a spare part or for later conversion, it is possible to buy the clamps or struts separately.

These articles are suitable for this product: Headlamp

Dimensions:

WITH/WITHOUT INDICATOR MOUNT (LONG)
X = 97 mm
Y = 74 mm

WITH INDICATOR HOLDER (SHORT)
X = 82 mm
Y = 74 mm

WITH INDICATOR HOLDER (EXTRA SHORT)
X = 55 mm
Y = 70 mm

Scope of delivery:
Lamp strut set, milled aluminium, black
Set of lamp clamps, milled aluminium, black

Notice:
The headlight should be fixed with an M8 screw (not included).
For mounting on Triumph Bonneville, Scrambler and Thruxton models, the original ignition lock is relocated. Please order LSL ignition lock holder as well.
