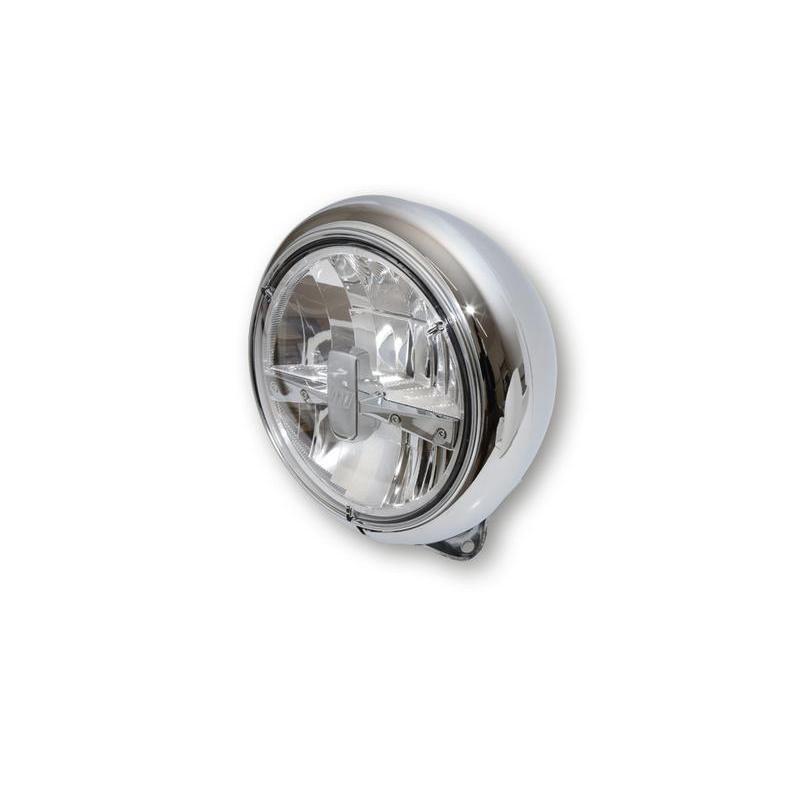

HIGHSIDER 223-148 : HIGHSIDER 7 LED Headlight HD-Style"

HIGHSIDER HD-Style Type 3 Spotlight, 7'LED, metal housing with insert and cover, clear glass, round, lower mounting, E-marked.

Stylish-innovative power LED headlight in a puristic design with sidelight function and round, clear glass. The metal case is available in black or chrome, the asymmetric insert are chrome plated, E-marked and approved for right-hand traffic only.

Dimensions:

• Case diameter: 220 mm


• Headlight insert diameter: 178 mm


• Depth: 155 mm


• Distance between mounting holes on bracket (center – center): 65 mm

Connections on reflector in headlight housing:

• Black cable = Ground (-)


• Red cable = Low beam (+), power consumption: at 12 Volt 18 Watt, approx. 1132 Lumen.


• White cable = high beam (+), power consumption: at 12 Volt 30 Watt, approx. 1770 Lumen.


• Brown cable = parking light (+), power consumption: at 12 Volt 0.7 Watt

Available in different colors.

Scope of supply: 1 piece including mating plug (connecting plug) with 210 mm cable, for H4 halogen bulbs, connections:

• Green cable = ground (-)


• Blue cable = high beam (+)


• White cable = low beam (+)

Note 1: Asymmetrical use, approved for right-hand traffic only.
