HIGHSIDER 223-248 : HIGHSIDER Pecos Typ 10 - 5 3/4 inch LED Spotlight - Side Mounting
Type of light: LED
Packaging: per unit
Color: Matte black
Approval: E-Mark
Position : Front
Composition: Steel
Diameter Ø (mm): 160
Atención al cliente
Envío internacional
Type of light: LED
Packaging: per unit
Color: Matte black
Approval: E-Mark
Position : Front
Composition: Steel
Diameter Ø (mm): 160

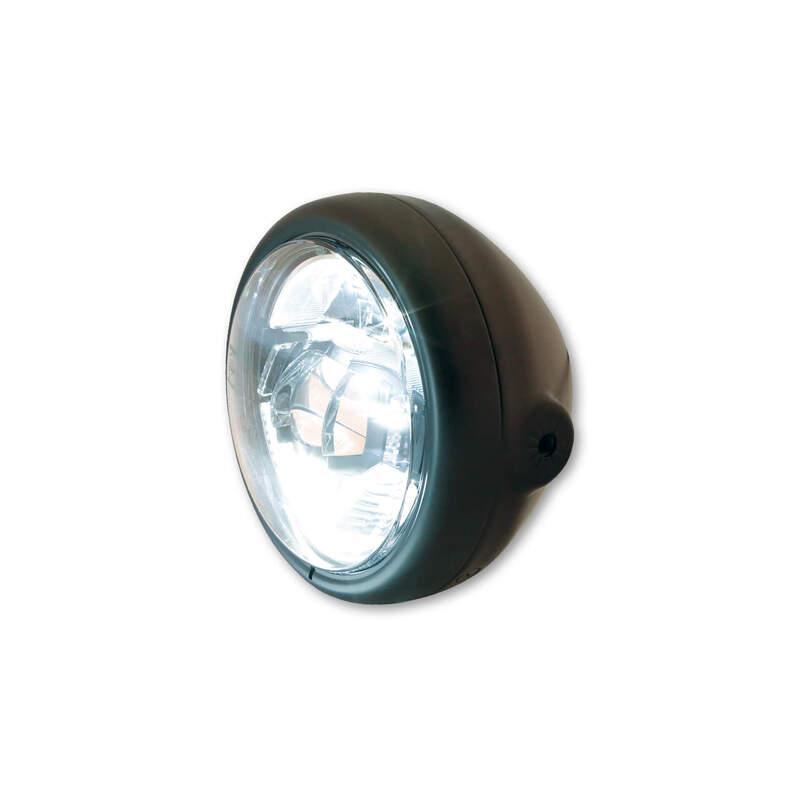

HIGHSIDER 5 3/4 inch LED main headlight PECOS TYPE 10, E-approved
Round LED headlight with a black metal housing. The symmetrical insert TYPE 10 has a high beam, low beam and parking light function. The tested headlamp is also robust and easy to install.
Our highlights - give your bike a distinctive style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!
Dimensions:
Housing diameter outside/inside: 160/155 mm
Diameter headlight insert: 145 mm
Mounting: bottom or side
Connections:
(3 pin connector)
Red = low beam (+)
Yellow = high beam (+)
Brown = ground (-)
White = position light (+)
Notes:
- Bottom and center is low beam, high beam is on top
- Parking light is left and right
Scope of supply: 1 piece.
