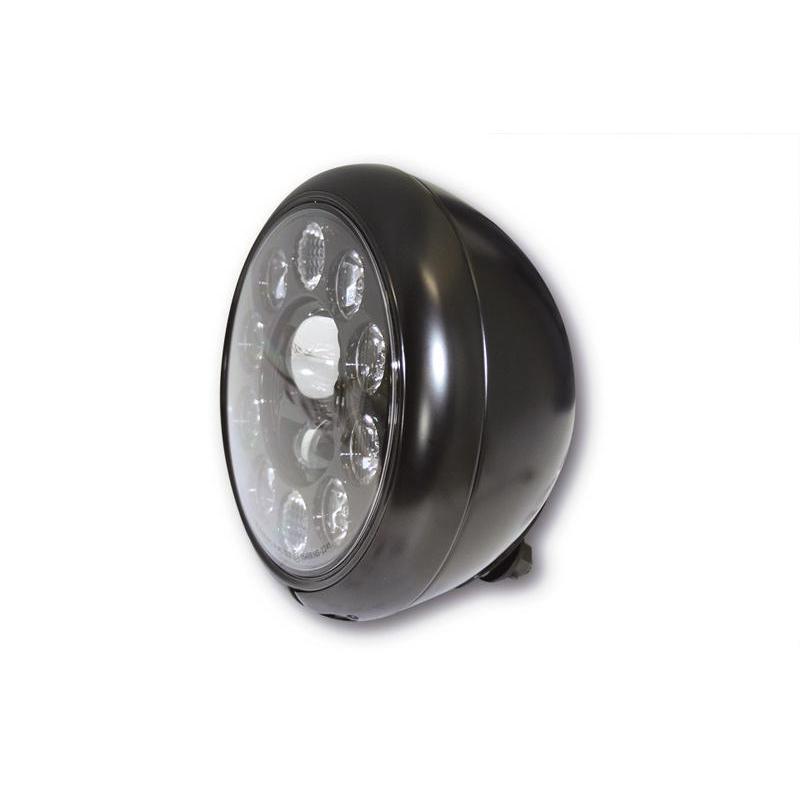

HIGHSIDER 223-183 : HIGHSIDER 7 HD-Style Type1 LED Headlight"

HIGHSIDER HD-Style Type 1 LED Headlight, 7 inch LED, metal housing, round, lower mounting, E-approved

Stylish-innovative power LED spotlight in a puristic design with parking light function and a round, clear glass. Asymmetric insert – for right-hand traffic only

The bright joy gives your bike a distinctive style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions:

• Housing diameter: 220 mm


• Headlight insert diameter: 178 mm


• Depth: 155 mm


• Distance of the mounting holes on the bracket (center – center): 65 mm

Technical specifications:

• Power consumption at 12.5 Volt DC:


• Dispersional beam: 1.9 Ampere (approx. 23.75 watts).


• 12 volts 1069 lumens.


• Only the two inner ellipsoid inserts shine.


• High beam: 1.4 amperes (about 17.5 watts).


• 12 volts 1100 lumens


• Only the outer LED circle shines. When the headlight flasher is activated, all LEDs

connections on the reflector in the headlight housing light up:

• Black cable = ground (-)


• Blue cable = low beam (+)


• Red cable = high beam (+)


• Additional 2 extra cables for parking light:


• Red cable = parking light (+)


• Black cable = ground (-)

Supplied scope of delivery: 1 piece including mating connector with 210 mm cable, for H4 halogen bulbs, connections:

• Green cable = ground (-)


• Blue cable = high beam (+)


• White cable = low beam (+)

Notes: Asymmetrical use – approved for right-hand traffic only.
