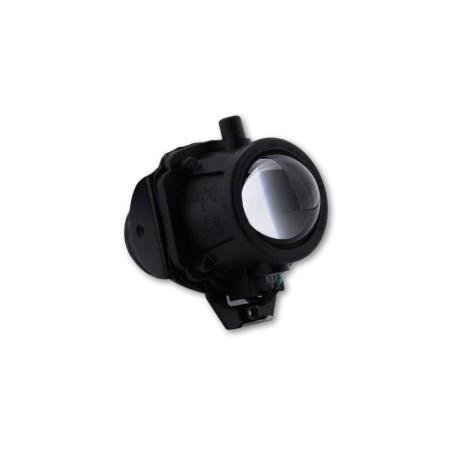

SHIN YO 223-309 : SHIN YO Ellipsoidal Headlamps Low Beam And High Beam Function

SHIN YO ellipsoid headlamp with rubber cover,
approved as main headlamp.

dipped beam and main beam function, H3 12V / 55 Watt, with parking light, E-examined

lens diameter: approx. 60 mm
front plastic ring: diameter= 78.5 mm
total length.: approx. 160 mm
Width Steel bracket: approx. 111 mm

Fixing holes on bracket with M6 thread

Application:
3-pin plug:
Green = Ground (-)
White = Low beam (+)
Blue = High beam (+)
An extra round plug with brown cable = Parking light (+)
