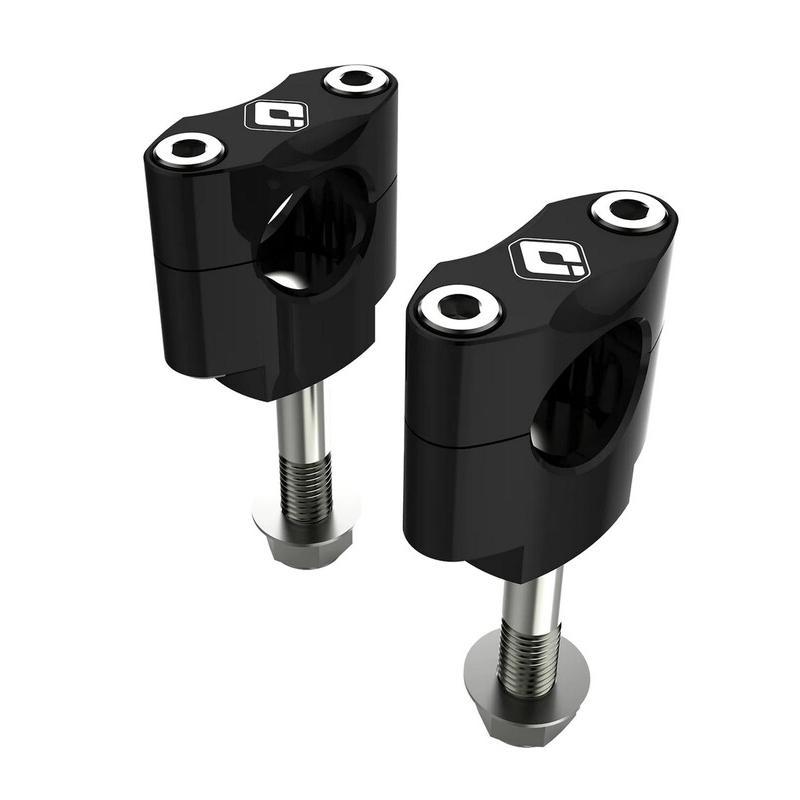

ODI H71BMB : ODI Oversize Bar Clamps

The ODI Oversized Handlebar Mounts are designed to replace your stock OEM 22,2mm (7/8') Handlebar Mounts when upgrading to “oversized” 28,6 mm (1-1/8”) Diameter Handlebars such as the ODI CFT Podium or Podium FLIGHT Handlebars. They can be used for standard or “Rubber Mounted” Triple Clamps found on Honda and Kawasaki Motocross and Off-Road Motorcycles.

BAR MOUNT FEATURES:

• Made from sturdy 6061 grade alloy for improved strength and durability


• Chamfered clamp surface reduces handlebar stress on impact


• Designed to fit both standard and rubber mounted triple-clamps


• 5mm offset


• Includes the following mounting hardware:

  2x M12-70mm long chromoly hex-head bolts

  2x M12-50mm long chromoly hex-head bolts

  2x M12 lock washers & nylon lock nuts

INSTALLATION NOTES:

Please refer to your owner’s manual for specifications regarding OE torque settings. Should your rubber mounted cones show signs of wear or deterioration, replace them prior to installation. Always be sure all bolts are secure and checked for proper tension and alignment.
