HIGHSIDER 223-028 : HIGHSIDER 5 3/4 LED Headlight Jackson, Bottom Mounting"

HIGHSIDER Jackson Headlight 5 3/4' LED.

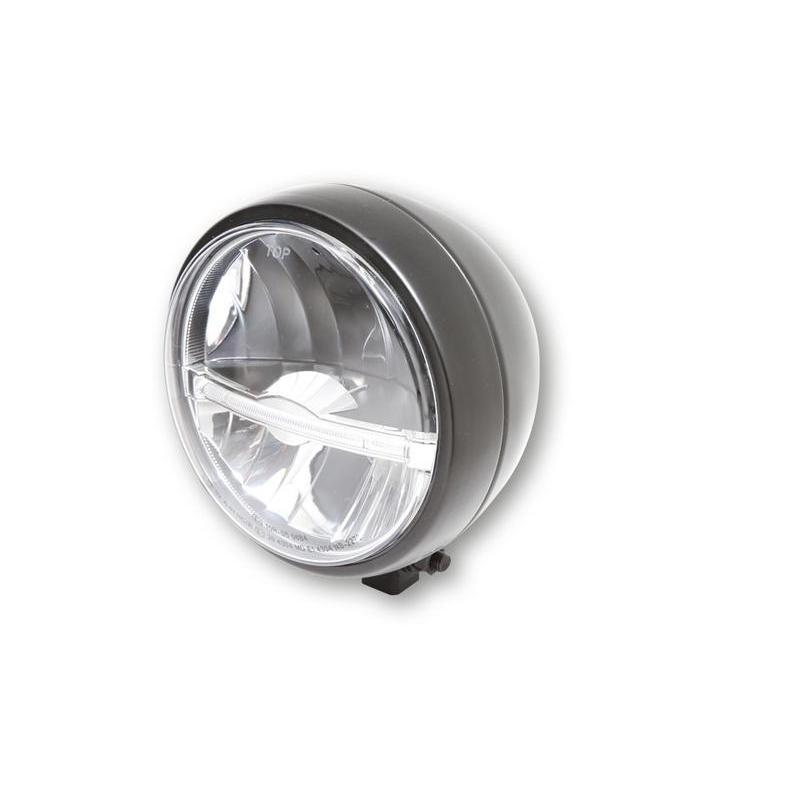

The classic for all Cruiser models -round LED headlight with chrome or black metal body and chrome insert and clear glass for bottom mounting. The LED parking light is shown in the middle of the insert as a light strip (Light Guide System). The headlight has an asymmetric prismatic reflector, E-approved.

Our highlights give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight!

Dimensions:

• Housing diameter: approx. 160 mm


• Diameter headlight insert: approx.146 mm (5 3/4 inch)


• Depth: approx. 133 mm with glass


• Middle of mounting bolt to rear of housing: approx. 60 mm


• Fixing bolt M10

Technical data:

• Voltage: 12 V

Connections:

• Black = Ground (-)


• Blue = Low beam (+)


• Red = High beam (+)


• White = Parking light / Parking light (+)

Scope of supply: 1 piece

Optionally available: Matching LED insert JACKSON, chrome: Art.-No. 1108025 5 3/4'
