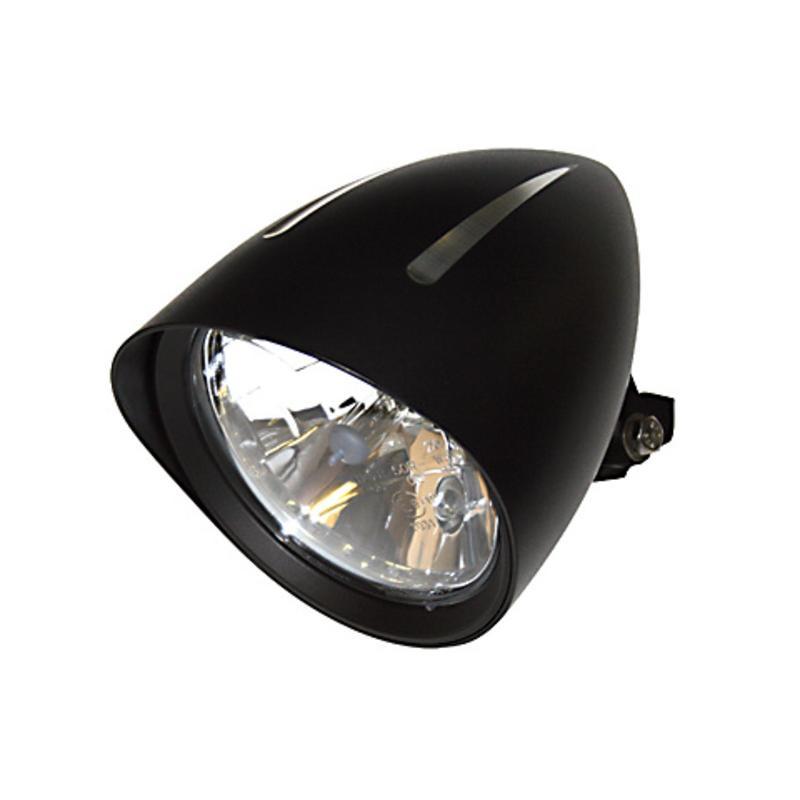

HIGHSIDER 223-034 : HIGHSIDER 5 3/4 Headlight Classic 1 Extreme, H4"

HIGHSIDER Classic 1 Extreme Headlight 5 3/4' for lower mounting

H4 halogen headlight with a high quality black aluminum housing with 3 distinctive CNC milled grooves and a nostalgic umbrella (length: about 25 mm) in retro look. The headlight has an asymmetric prismatic reflector – only approved for right-hand traffic – and parking light, E-approved.

Technical data:
Lamps: H4, 12 V 60/55 W
Fixing: bottom
Diameter: 157 mm
Depth: 220 mm
Holder centre fixing screw to front: 127 mm
Holder clearance: 18 mm
Fixing: bottom

Connections:
White cable = dipped beam (+)
green cable = mass of H4 bulb
blue cable = high beam (+)
brown cable = parking light (+)
black cable = mass of parking light (-)

Notes:
Asymmetrical reflector – only approved for right-hand traffic!.
Replacement insert: 1107668
