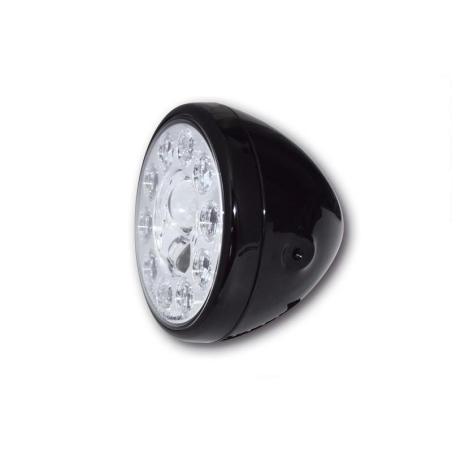

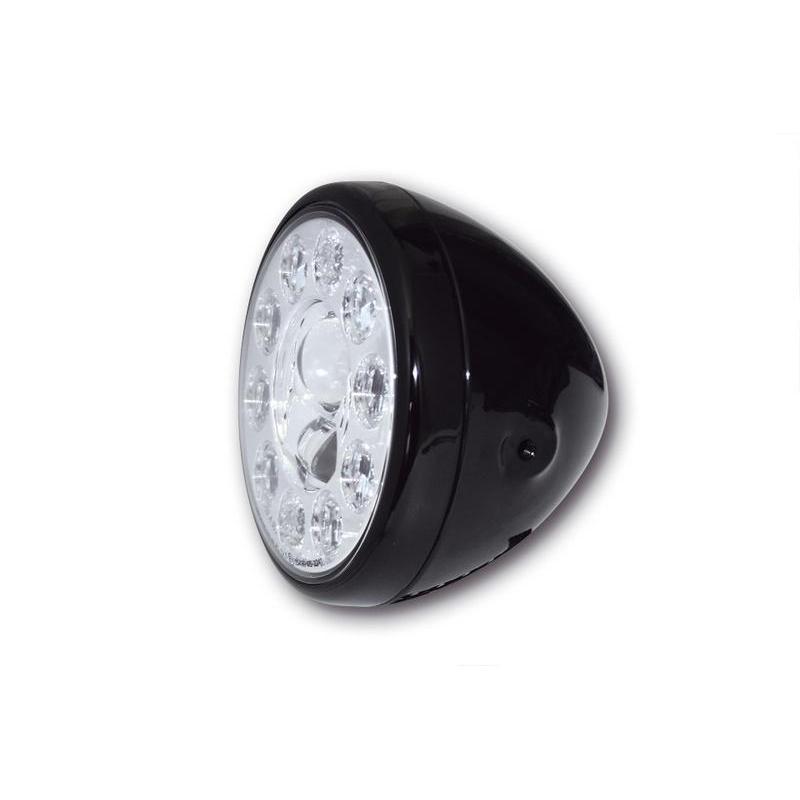

HIGHSIDER 223-132 : HIGHSIDER 7 LED Spotlight Reno Type1"

HIGHSIDER Reno Type 1 headlight, 7' LED for side mounting.

Innovative power LED headlight with parking light and round, clear glass. The metal housing is painted high-gloss black or chrome-plated and has a chrome-plated, asymmetrical - only approved for right-hand traffic - insert, E-approved.

Headlight dimensions:

• Housing diameter: 200 mm


• Headlight insert diameter: 178 mm


• Housing depth: 160 mm


• Distance between mounting holes (centre - centre): 170 mm


• Distance of fixing hole (centre) to housing

Technical specifications:

• Current consumption at 12.5 volts DC:


• Low beam: only 1.9 amps (approx. 23.75 watts).


• 12 volts 1069 lumens


• Only the two inner ellipsoid inserts are illuminated.


• High beam: only 1.4 amps (approx. 17.5 watts).


• 12 volts 1100 lumens


• Only the outer LED circle lights up. When the headlight flasher is activated, all LEDs light up.

Connections on the reflector in the headlamp housing:

• Black cable = ground (-)


• Red cable = high beam (+)


• Blue cable = low beam (+)


• Additional 2 cables for parking light: Black = ground (-), red = parking light (+)

Coupling connector connections::

• Green cable = ground (-)


• Blue cable = high beam (+)


• White cable = low beam (+)

Scope of delivery: 1 piece including connection plug with 210 mm cable, for H4 halogen bulbs

Notice: Asymmetrical reflector - only approved for right-hand traffic.
