HIGHSIDER 223-193 : HIGHSIDER 4 3/4 LED Spotlight Flat Typ 9"
Cover color: Translucent
Light type: LED
Packaging: per unit
Color: Black
Approval: E-Mark
Position: Front
Composition: Steel
Diameter Ø (mm): 138
Color: Black
Atención al cliente
Envío internacional
Cover color: Translucent
Light type: LED
Packaging: per unit
Color: Black
Approval: E-Mark
Position: Front
Composition: Steel
Diameter Ø (mm): 138
Color: Black

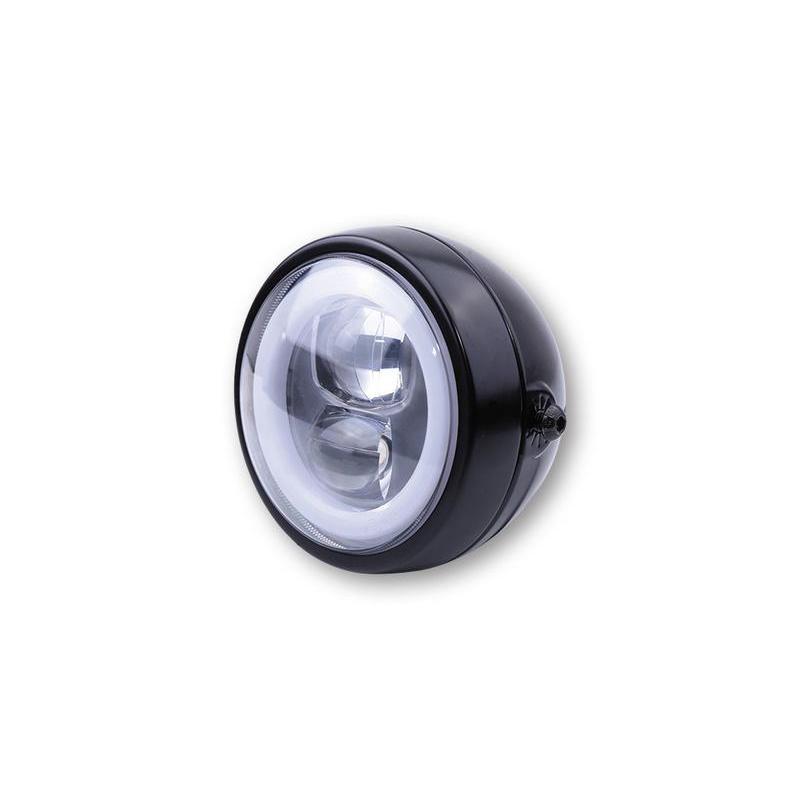

HIGHSIDER Flat Type 9 Headlight LED, 4 3/4 inch with parking light ring, E-approved.
With its compact 4 3/4' size, the LED headlight Flat Type 9 cuts a fine figure on your bike. Smallbut still robust. Powerful LED technology solidly packed in a steel housing with round shape and flat back.
Tested main headlamp with high beam, low beam and parking light function.The dipped beam is at the bottom and the main beam at the top. The LED parking light is ring-shaped and encloses the reflector, forming a ring of light. The FLAT TYPE 9 is optionally available with Fixing points at the bottom or sides and in different colours.
Dimensions:
- Diameter of housing: 138 mm
- Diameter of insert: 120 mm
- Depth of housing: 95 mm
- Fastening: Bottom M10 screw, L:25 mm
- Weight: 0,992 kg
Connections:
- Power consumption: 3 Pin connector
- Red = high beam (+)
- White = low beam (+)
- Green =position light (+)
- Black = mass (-)
Delivery scope: 1 piece
