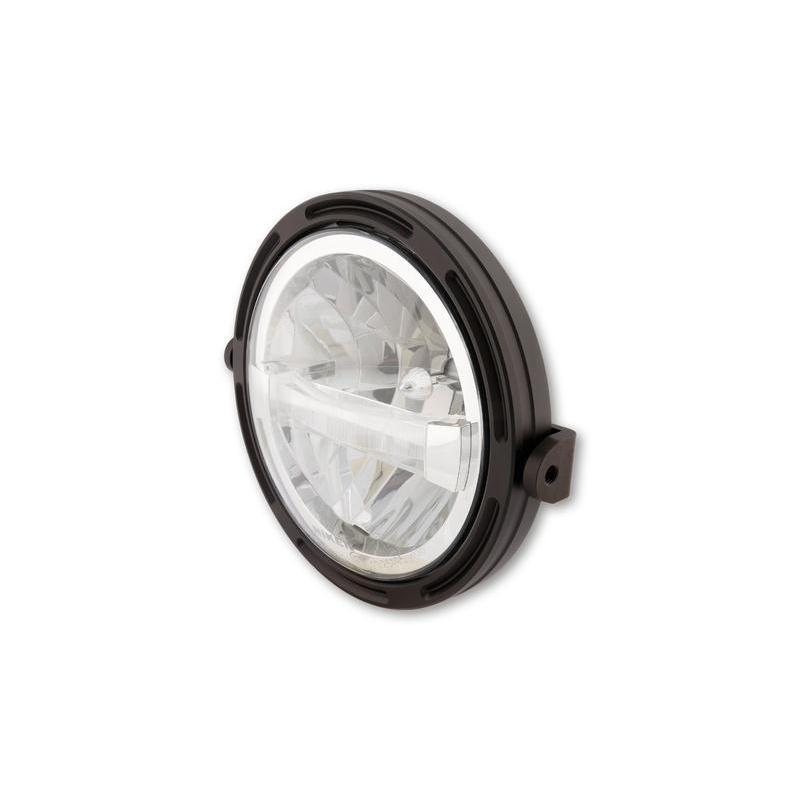

HIGHSIDER 223-254 : HIGHSIDER 7 LED Main Headlight Frame-R1 Type4, Black, Lateral Mounting"

HIGHSIDER LED main headlight FRAME-R1 Type 4, E-approved

Every centimetre counts to place the headlight as narrowly as possible between the two standpipes in the fork. With the puristic aluminium ring it is possible for the first time to mount different LED headlight inserts free-standing on the motorcycle. The deliberate omission of a headlamp housing enables an unbeatably narrow installation position and also provides better cooling of the LED unit.

In many motorcycles the H4 or H7 lamp shines, which more or less sparkles. Seeing better usually also means being seen better at the same time. Whether you want to replace it for better visibility at night, better recognition during the day, or to give your motorcycle a more beautiful look, if you are looking for a stylish and innovative power headlight, the FRAME-R1 LED headlight is an excellent choice.

For variable mounting of the headlamp two different mounting systems are available.

• Side Mount, the conventional screw connection at the side of the lamp holder


• Bottom Mount, attachment at the bottom for screw connection to the fork bridge

The Side-Mount holders can be mounted in three positions, thus compensating for 32mm in installation depth and 46mm in width.

Features:

• Round 7-inch headlight with CNC mounting ring and mounting kit


• Mounting WITHOUT a headlight housing


• Improves cooling


• Many installation possibilities


• Flat mounting


• Modern optics, stylishly innovative


• Clear glass


• Chrome-plated reflector


• High beam, low beam Parking and daytime running light function


• Daytime running and position light installed in a central strip


• Low beam light shines above the strip, the high beam light shines accordingly below


• Asymmetrical luminous flux


• E-tested, nothing needs to be entered

Dimensions:

• A diameter = 200 mm


• GA diameter = 168 mm


• I diameter = 160 mm


• T = 61 mm


• R = 10 mm

Connections / power consumption (3 pin connector):

• Black cable = ground (-)


• Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W


• Yellow cable = high beam (+), power consumption at 12V: 1,3A, 13W


• Black cable = ground (-)

TFL:

• Black cable = ground (-)


• Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W


• White cable = position light (+), power consumption at 12V: 0.2A, 2.4W

Supplied: 1 piece
