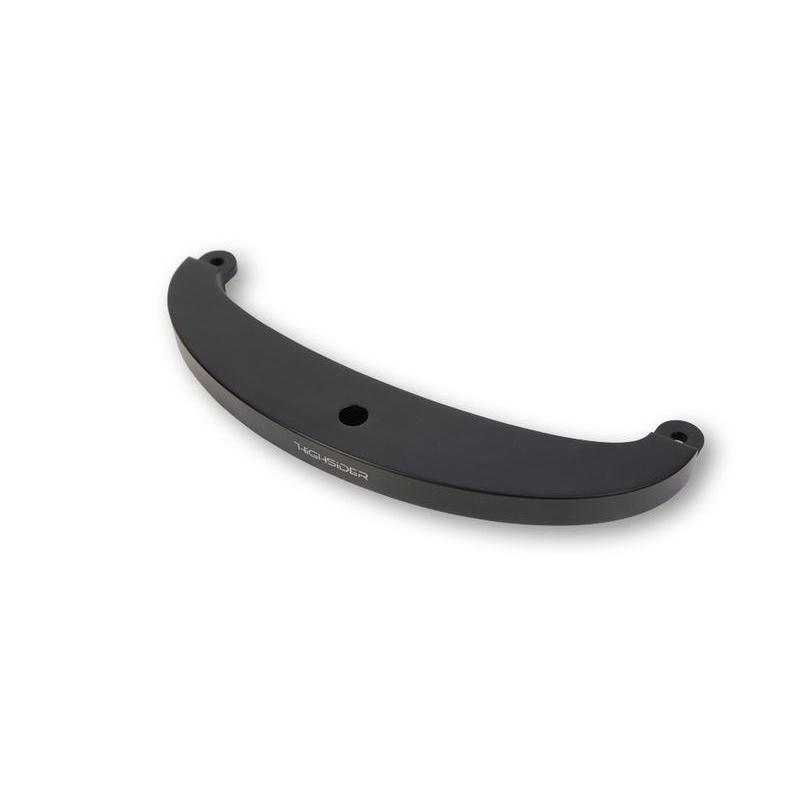

HIGHSIDER 220-222 : HIGHSIDER CNC Head Light Holder Bottom Type2

HIGHSIDER CNC aluminium headlight holder BOTTOM TYP2

CNC-milled holder made of aluminium for mounting headlights with lower mounting.
Bore for fixing the headlight max. M 10. Suitable for forks with a width of 205 mm to 245 mm (measured from the centre of the fork standpipe to the centre of the fork standpipe).

The exact width is adjusted by changing the mounting angle on the bracket using the additional standpipe clamps required.

Holder dimensions:

• Overall width: 240 mm


• Width: 225 mm (from attachment to attachment)


• Depth: 37 mm


• Height: 15 mm

Scope of supply: 1 piece

Note: In addition, you will need HIGHSIDER's specially manufactured standpipe clamps (supplied as a pair) for the following standpipe diameters:

• 1108711002 (207-403) = 35 mm - 37 mm


• 1108711004 (207-405) = 38 mm - 41 mm


• 1108711006 (207-409) = 42 mm - 43 mm


• 1108711008 (207-419) = 50 mm, 52 mm, 54 mm
