HIGHSIDER 223-165 : HIGHSIDER 7 Voyage HD-Style LED Headlight, Bottom Mounting"

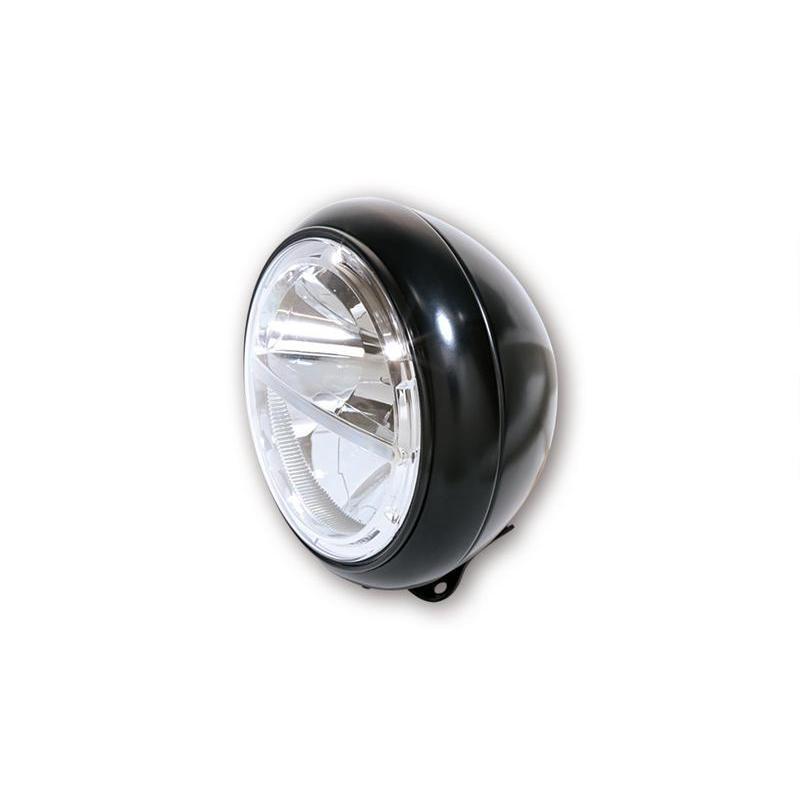

HIGHSIDER Voyage 7-inch LED headlight VOYAGE HD-STYLE for bottom mounting Innovative power LED headlight in a purist design with parking light function.

The oval metal housing is painted black or chrome-plated, the insert is chrome-plated. The LED technology and the used reflector produce a symmetrical, bright light and provide an optimal perception of bikers by other road users, E-examined.

Our highlights give your bike an unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight!

Dimensions:

• Enclosure diameter: 220 mm


• Headlight insert diameter: 178 mm


• Depth: 155 mm


• Distance between the mounting holes on the bracket (center - center): 65 mm

Technical specifications:

• Power consumption at 12.5 Volt:


• Dispersion light: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 lumen.


• High beam: 1.5 amperes (approx. 18.5 watts), approx. 1200 lumen.

Connectors, 3-pin combo plug:

• Black cable = Ground (-)


• White cable = Low beam (+)


• Yellow cable = High beam (+)


• Red extra cable = Parking light (+)

Supplied equipment: 1 piece

Notes:

• Symmetrical reflector - also approved for left-hand traffic.


• Replacement insert: Art.-Product No. 1108030
