HIGHSIDER 223-247 : HIGHSIDER Bates Style Typ 10 - 5 3/4 inch LED Headlight

HIGHSIDER 5 3/4 inch LED main headlight BATES STYLE TYPE 10, E-approved

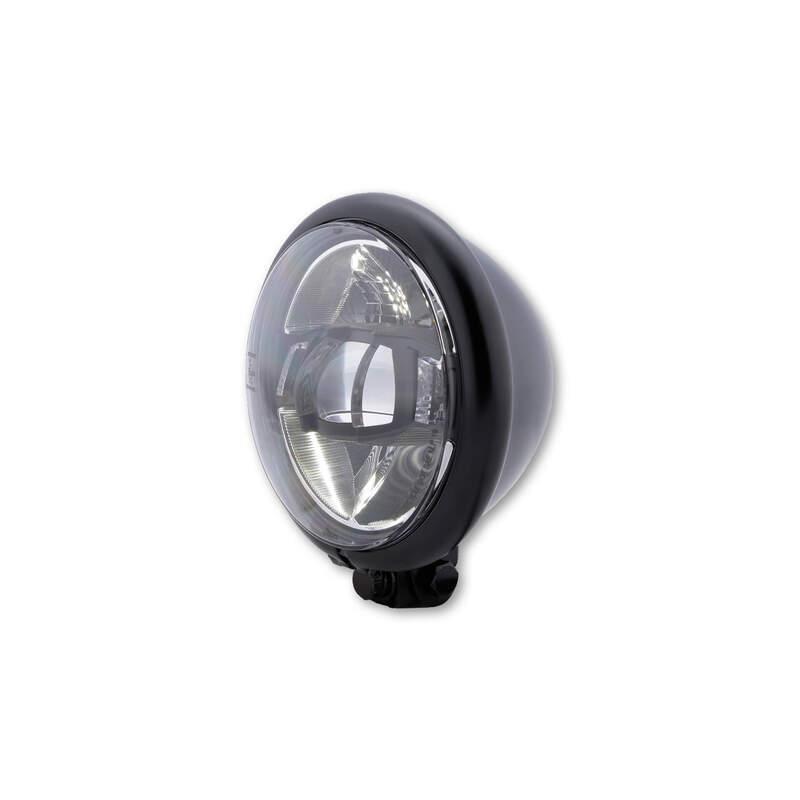

Round LED headlight with a black metal housing in BATES STYLE design. The symmetrical insert TYPE 10 has a high beam, low beam and parking light function. The tested headlamp is also robust and easy to install.



Our highlights - give your bike a distinctive style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!



Dimensions:

Housing diameter: 155 mm

Diameter headlight insert: 145 mm

Depth without glass: 110 mm

Mounting: bottom



Connections:

(3 pin connector)

Red = low beam (+)

Yellow = high beam (+)

Brown = ground (-)



White = position light (+)



Scope of supply: 1 piece.
