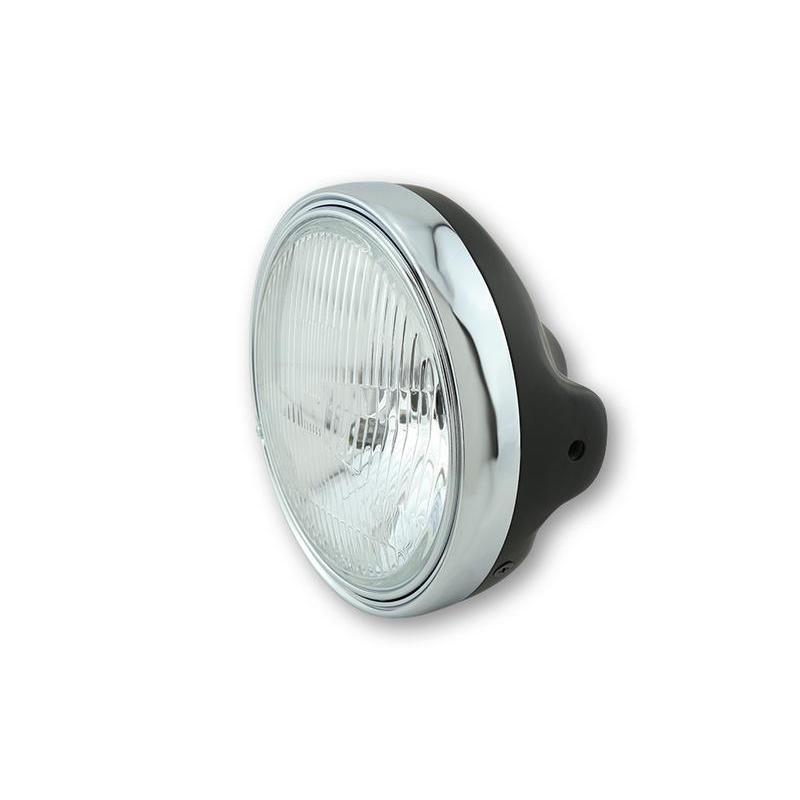

SHIN YO 223-159 : SHIN YO LTD Headlight 7 H4 Insert Embossed Glass Matte Black"

SHIN YO 7 inch LTD main headlight, E-approved

- Approved as main headlight
- Available in black matt or shiny with chRome ring metal housing
- H4 insert withParking light
- Embossed glass
- Mounting: Side, M8 x 1.25

- Dimensions:
- Distance between mounting holes: 200 mm
- Depth: 120 mm
- Distance between mounting holes and back of housing:70 mm

Assignment:
H4 connector
Green = Ground
White = Low beam
Blue = High beam

Stand light
Black = Ground
Brown = Stand light +

Supply includes: 1 piece incl.
- 1x triple connector
-1x bracket
- 1x parking light bulb

Note:
Supplied without H4 bulb
