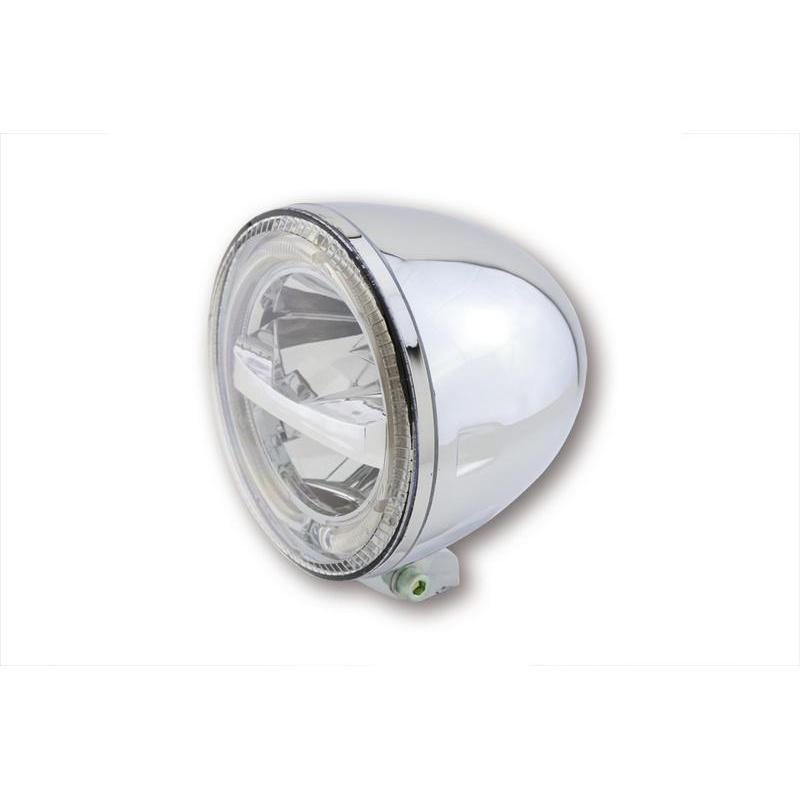

HIGHSIDER 223-049 : HIGHSIDER 5 3/4 LED Headlight Circle, Chrome"

HIGHSIDER Circle,  5 3/4' LED headlight with DRL / PL, metal housing, lower mounting, E-approved.

The Light Guide technology produces a very homogeneous light ring with daytime running and parking light function. The CIRCLE headlight comes in a high quality metal housing, either for the bottom or side mounting, in black or chrome.

Dimensions:

• Diameter of headlight insert: 146.5 mm


• Depth: 167 mm with glass.

Fixing: bottom with M6 mounting screws.

Connections:

• 12,5 Volt DC


• 3 Connectors:


• Green Cable = Ground


• White Cable = Low Beam


• Blue Cable = High Beam


• Brown Cable = Parking Light


• Red Cable = Daytime Running Light

Supplied:

• 1 x main headlamp


• 2 x hexagon socket screws


• 2 x 4 mm washers


• 2 x 2mm washers
