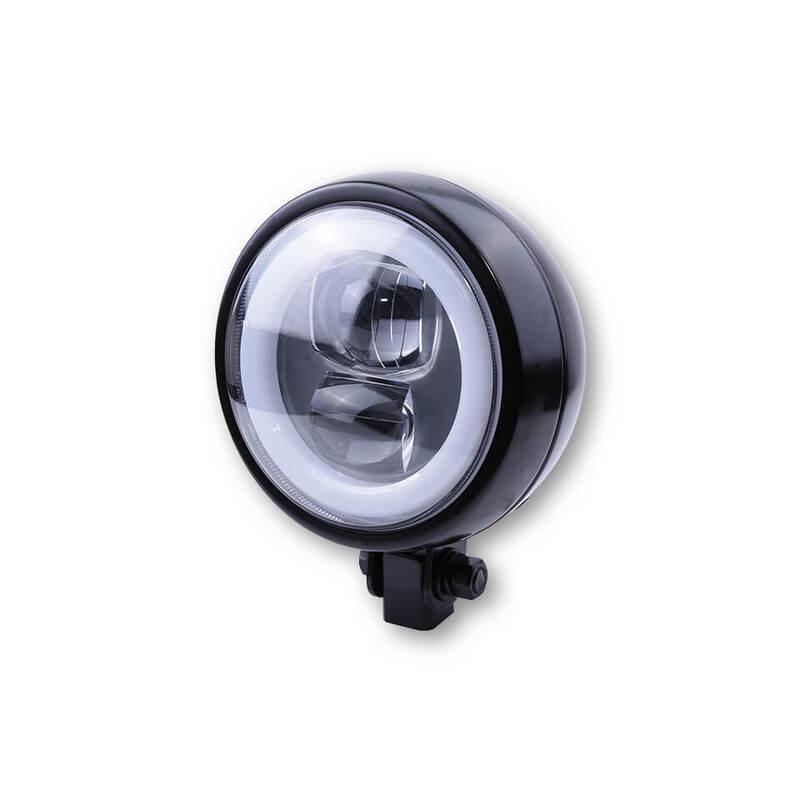

HIGHSIDER 223-194 : HIGHSIDER Flat Type 9 Headlight LED

HIGHSIDER Flat Type 9 Headlight 4 3/4' with parking light ring, E-approved

With its compact 4 3/4 inch size, the LED headlight FLAT TYPE 9 cuts a fine figure on your bike. Smallbut still robust. Powerful LED technology solidly packed in a steel housing with round shape and flat back. Tested main headlamp with high beam, low beam and parking light function.The dipped beam is at the bottom and the main beam at the top. The LED parking light is ring-shaped and encloses the reflector, forming a ring of light. The FLAT TYPE 9 is optionally available with Fixing points at the bottom or sides and in different colours.

Dimensions:
Diameter of housing: 138 mm
Diameter of insert: 120 mm
Depth of housing: 95 mm
Fastening: Version lateral M8Thread, L:16 mm or variant below M10 screw, L:25 mm
Weight: 0,992 kg

Connections:
Power consumption: 3 Pin connector
Red = high beam (+)
White = low beam (+)
Green =position light (+)
black = mass (-)
