HIGHSIDER 223-161 : HIGHSIDER 7 LED Main Headlamp Voyage, Bottom Mounting"

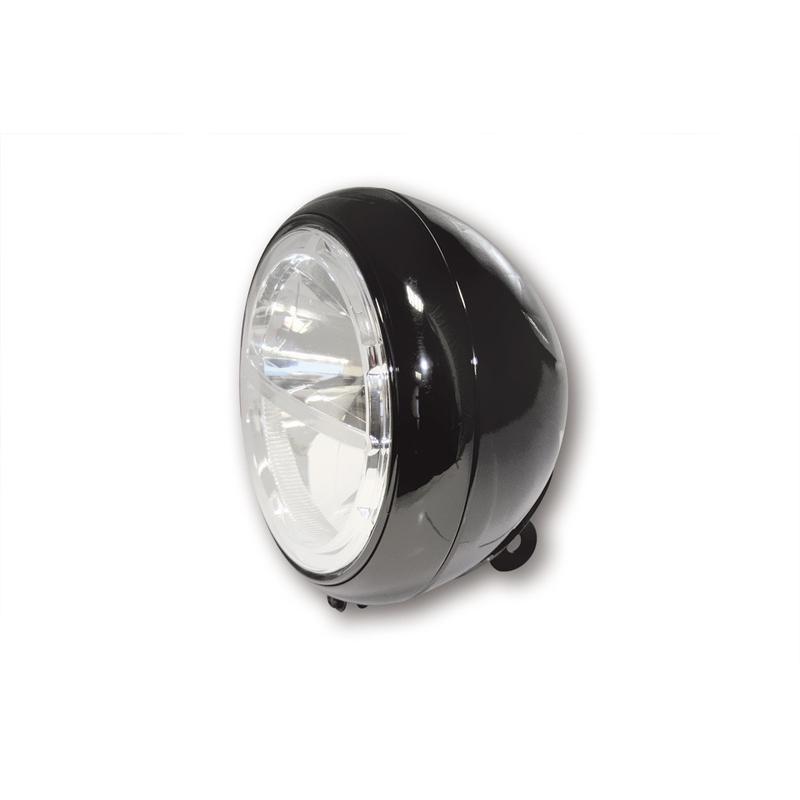

HIGHSIDER Voyage main headlight LED 7''- bottom mounting

Stylish-innovative Power-LED headlight in a puristic design with parking light function and a round, clear glass.The oval metal housing is available in black or chrome-plated. The insert is chrome-plated. The LED technology and the inserted reflector produce a symmetrical, bright light and provideoptimal perception by other road users, E-tested.

Dimensions:
Body diameter: 205 mm
Diameter of headlight insert: 178 mm
Depth: 155 mm
Distance of mounting holes on the holder (centre - centre): 65 mm

Current consumption at 12.5 Volt:
discharged light: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 lumen.
distant light: 1.5 Ampere (approx. 18.5 Watt), approx. 1200 lumen.

Connections, 3-pin combo plug:
Black cable = ground (-)
White cable = low beam (+)
Yellow cable = high beam (+)
Red extra cable = parking light (+)
