HIGHSIDER 223-084 : HIGHSIDER LED Headlight Ultimate With Z-Holder

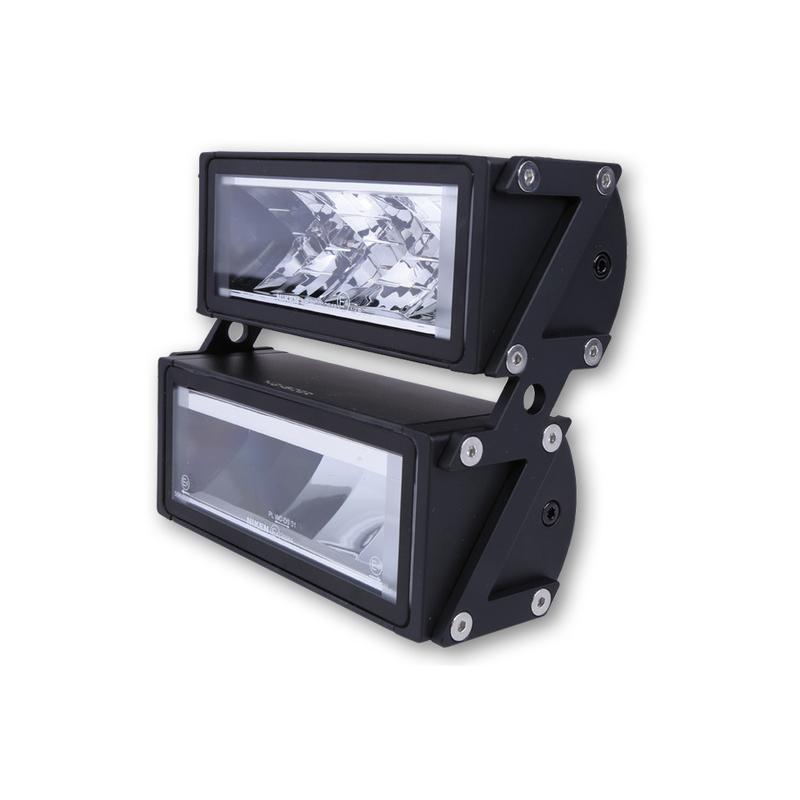

HIGHSIDER LED headlight ULTIMATE with Z-holder, black, side mounting

Combined with a holder in Z-shape, this LED headlight set consists of a high beam and low beam headlight with position light. There are cooling fins on the back of the aluminium housing.
The clear, simple design of the headlamp set is suitable for streetfighters, cruisers and naked bikes.

Dimensions:
Width 146 mm
Depth 73 mm
Height: 124 mm
Distance of the fixing holes (middle – middle): 62 mm
Fixing: Mounting holes on the side with Ø 10 mm

Connections:
Black cable (2x) = Ground (-)
Yellow cable = High beam (+)
Blue cable = Low beam (+)
White cable = Position light (+)
