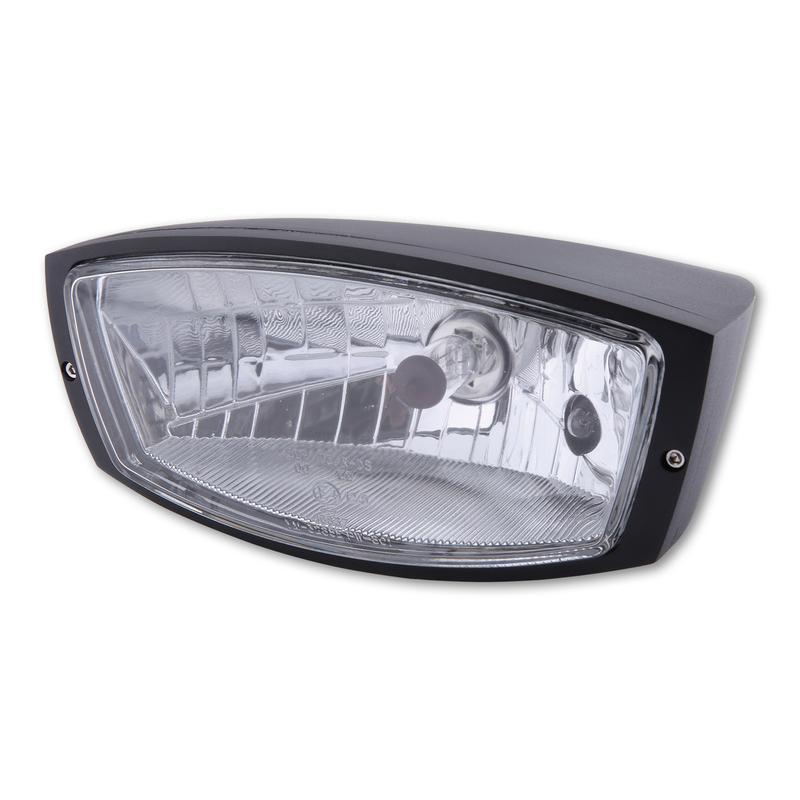

HIGHSIDER 223-058 : HIGHSIDER Oregon Headlight

HIGHSIDER Oregon main headlight for side mounting

H4 halogen main headlight including parking light and a metal housing in black or chrome-plated. The reflector emits a bright, symmetrical light – for good road illumination and optimum visibility. The trapezoidal headlight captivates by its soft, curved lines and the noble high-gloss housing, E-approved.

Technical specifications:
Lamps: H4, 12 V 60/55W
Width: 195 mm
Height: 95 mm
Depth: 155 mm (with glass)
Fixing: lateral, 3-fold adjustable with M 10 x 1.5 mm fixing bolts.

Connections H4 headlight:
Black cable = Ground (-)
Yellow cable = Low beam (+)
Blue cable = High beam (+)

Connectors Parking light:
Black cable = Ground (-)
Green cable = Plus (+)

Scope of supply: 1 unit Spare parts:
Installation: 1108029 Clear glass H4 symmetrical
