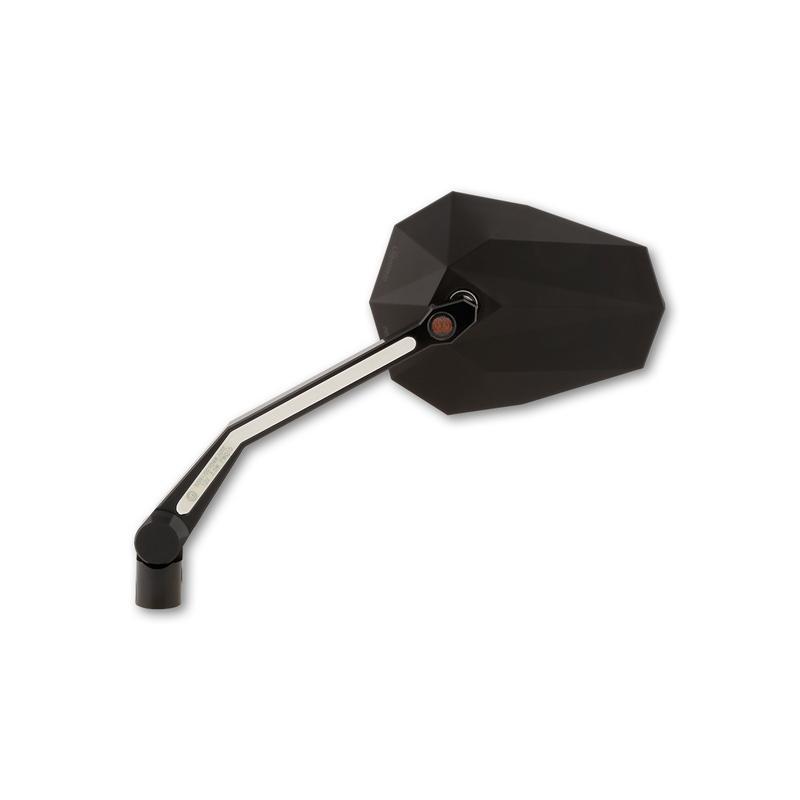

HIGHSIDER 301-453 : HIGHSIDER Mirror Stealth -X4 With LED Indicator & Position Light (Pair)

HIGHSIDER Stealth-X4 mirror with LED indicators & position light, E-approved

Position lights are an effective means of being seen by other road users. The silhouette of the bike is visually broadened and thus the recognizability is improved. For this reason we have combined our HIGHSIDER STEALTH -X4 mirror with an LED turn signal and a bright LED position light.

Usually the lighting is integrated in the mirror head, unconventionally we have embedded the lighting elegantly in the mirror arm. The characteristic stealth design known from the military stealth technology distinguishes the shapely and high-quality manufactured mirror additionally. Combined with the matt black colour, the mirror head made of high-quality plastic with its angular elements has a striking appearance.

Thanks to the use of lightweight materials, the HIGHSIDER STEALTH series belongs to the weight class of flyweights. The screw connection with the handlebar fittings is made via black coated adapters (M10x1.25) with aluminium lock nut and is therefore suitable for most models on the market.

For Yamaha models with left-hand thread, a corresponding adapter is included. An adjustable joint provides additional adjustment possibilities for the HIGHSIDER STEALTH -X4.

Dimensions:
A: Width head: 119 mm
B: Height head: 90 mm
C: Total width: 175 mm
D: Total height: 170 mm
Stem length: 144 mm to the bend, from the bend 44 mm to the joint, then another 40 mm to the threaded bolt.
Sunk hole: M8 x 1.25 mm
Adapter: M10 x 1.25 mm

Scope of supply: 1 pair incl.
2x mirror adapter M10 x 1.25 right-hand thread
1x mirror adapter M10 x 1.25 left-hand thread

NOTE on mounting position:
Align the mirror arm exactly forward in the direction of travel and position and fix at an angle of 45°
