HIGHSIDER 223-155 : HIGHSIDER LED Spotlight HD-Style Typ 4

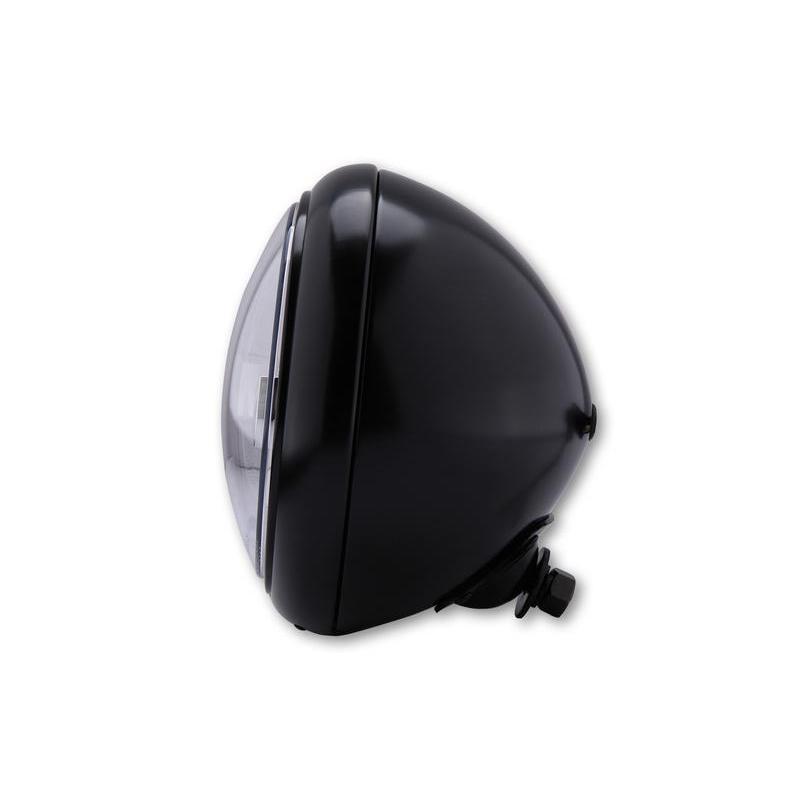

HIGHSIDER Oval main headlight with holder for lower attachment. Thanks to its puristic, timeless design and innovative technology, it is a highlight for many motorcycles.

The chrome Reflector with clear glass has a high beam, low beam, parking and daytime running light function. The daytime running and position light are installed in a central strip, so that optically a very good beautiful light image is created - the low beam shines above the bar, the high beam correspondingly below. The reflector emits an asymmetrical beam - approved for right-hand traffic only- Luminous flux off, E-tested.

Our highlights - give your bike a distinctive style! The unusual design and the perfect technology of the HIGHSIDER headlight series make ita highlight in every case!

Dimensions:

• Housing diameter: 220 mm


• Diameter headlight insert: 178 mm


• Depth: 155 mm

Connections:

• Black cable = ground (-)


• Blue cable = low beam(+), power consumption at 12V: 1.8A, 22W


• Yellow cable = high beam (+), power consumption at 12V: 1.3A, 13W


• Black cable = ground (-)

TFL:

• Black cable = ground (-)


• Red cable = daytime running light(+), power consumption at 12V: 1.2A, 14W


• White cable = position light (+), power consumption at 12V: 0.2A, 2.4W

Scope of delivery: 1 piece incl. 3 pin plug and holder for lowerFastening:

Optionally available: Main headlight insert TYPE 4, chrome, art. no.: 226-018

Notes:

• Asymmetrical insert, only approved for right-hand traffic.


• The enclosed 3-poleStandard plug must be mounted by the customer after reflector installation.

View of plug contacts:

• High beam (yellow) = right


• Dipped beam (blue) = top


• Ground (black) = left
