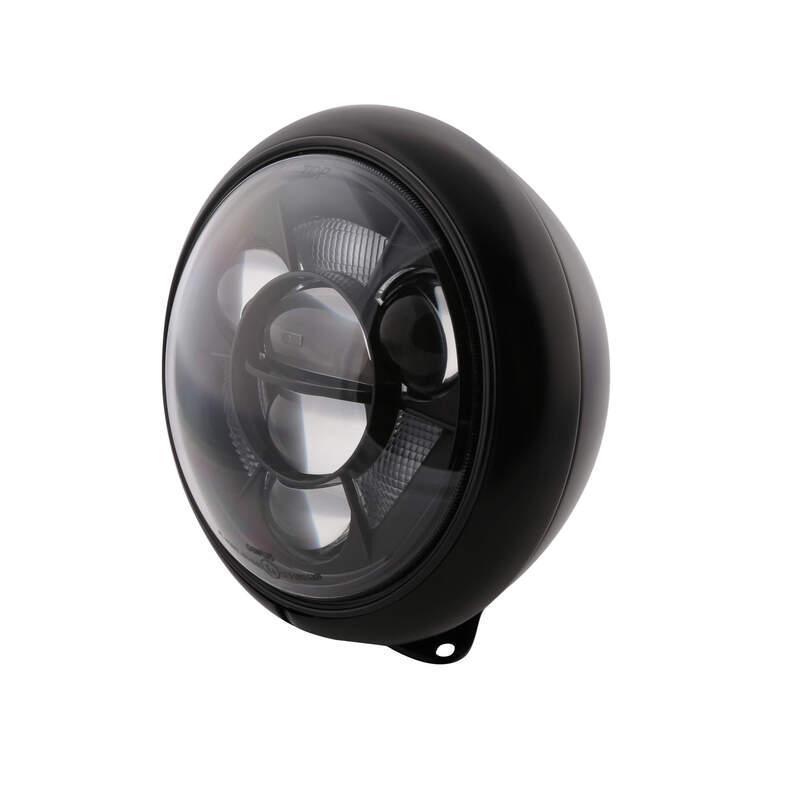

HIGHSIDER 223-292 : HIGHSIDER HD-Style Type 11 7 Inch LED Headlight With TFL

HIGHSIDER HD-STYLE TYPE 11 7 inch LED headlights, E-tested

high beam, low beam, parking light and with TFL (daytime running light) function



See and be seen!

For motorcyclists of the highest importance. On many motorcycles, the H4 or H7 lamp lights up, more or less sparkling away. Seeing better usually also means being seen better at the same time, not unimportant when summer turns to fall and in times when cars are increasingly often equipped with bright daytime running lights. Whether to replace for better visibility at night, better visibility during the day, or to give your motorcycle a nicer look, if you are looking for a stylish and innovative power headlight, the LED main headlight is an excellent choice. The installed LED daytime running light in TYPE 11 is the perfect way to improve visibility during the day. The ellipsoid lenses in combination with powerful LEDs turn night into day and thus combine, a strong plus in safety with a polarizing unique optics. The headlamp is protected by a high quality metal housing and is available in black or chrome with black reflector and clear glass. The reflector emits an asymmetric luminous flux - approved for right-hand traffic only.



Stunning - give your bike your unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series will definitely make you a highlight!



Dimensions:

Diameter of housing: 220 mm

Diameter of headlight insert: 178 mm

Depth: 155 mm

Mounting: bottom

Distance of mounting holes on bracket (center - center): 65 mm



Connections:

Power input: 3 pin connector

Black wire = ground (-)

White wire = low beam (+)

Blue wire = high beam (+)



TFL:

Black wire = ground (-)

Brown wire = daytime running lights (+)

Gray wire = parking lights (+)



Scope of delivery: 1 piece.
