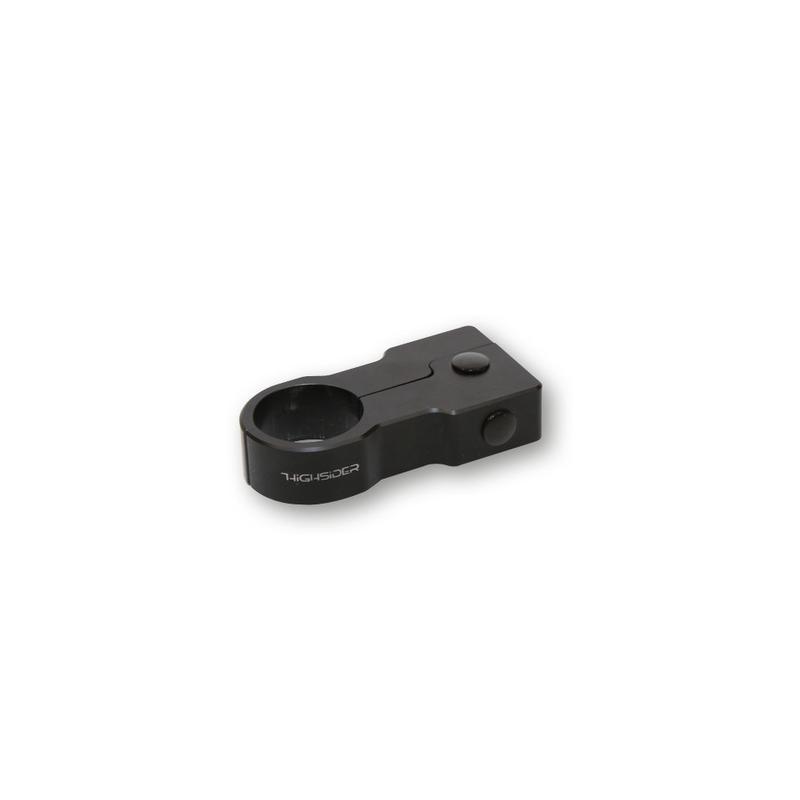

HIGHSIDER 220-101 : HIGHSIDER RS2 Universal Mount

Universal CNC holder made of black anodized aluminum.

The HIGHSIDER RS2 model is an ingenious multifunctional holder. Attached to the handlebars, it can be used to hold instrument, sat nav or mobile phone mounts. With a mounting on the crash bar, additional headlights, such as e. g. e.g. the HIGHSIDER SATELLITE low beam or high beam headlamps (1108017 / 1108018). A total of five holes with a female M6 thread ensure the greatest possible flexibility of use.

Fits pipe diameters of 20 mm, 22 mm, 27 mm and 28 mm. The holder can be easily and quickly adjusted to the diameters specified above using the enclosed inserts.

Dimensions

• Width: 38.5 mm


• Height: 17 mm


• Depth: 76 mm


• Internal thread: 5 x M6 (1 x front, 1 x top, 1 x bottom, 1 x each side)


• Clamping: 20 / 22 / 27 / 28 mm

Scope of supply:
4 x sealing plugs
3 x insert shells
