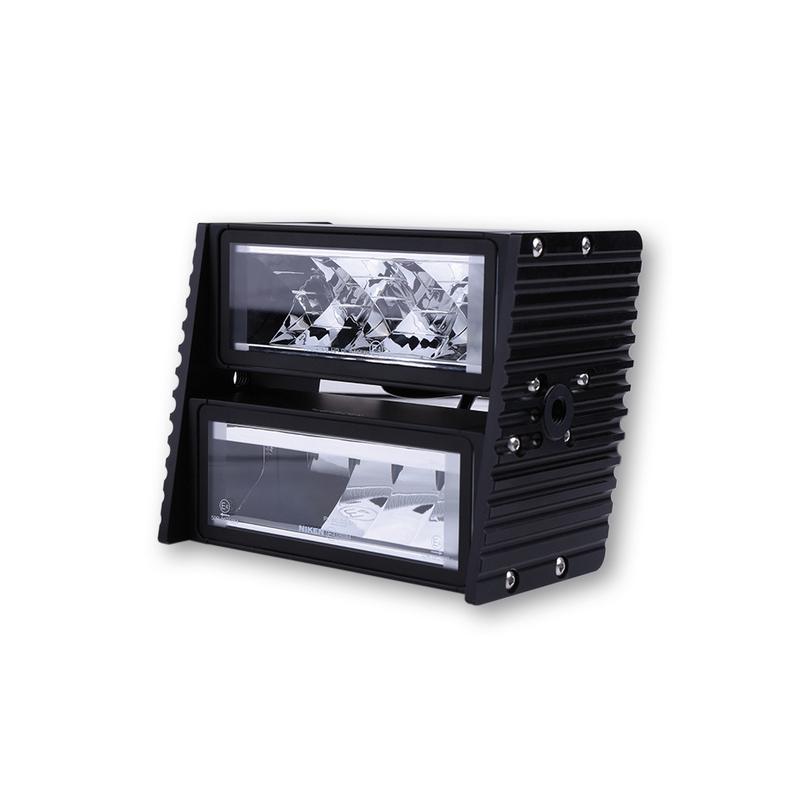

HIGHSIDER 223-085 : HIGHSIDER Ultimate LED Headlight With Wave Holder

HIGHSIDER ULTIMATE LED headlight with HIGHSIDER Wave holder, black, side mount

Connected to the HIGHSIDER Wave bracket, this LED headlight set consists of a high beam and low beam headlight with position light.
On the back of the aluminum housing are cooling fins. The clear, simple design of the headlight set is suitable for streetfighters, cruisers and naked bikes.

Dimensions:
Width 152 mm
Depth 98 mm
Height: 121 mm
Distance of mounting holes (center – end): 62 mm
Fixing: Mounting holes on the side with Ø M 10

Connections:
Black cable (2x) = ground (-)
Yellow cable = high beam (+)
Blue cable = low beam (+)
White cable = position light (+)
