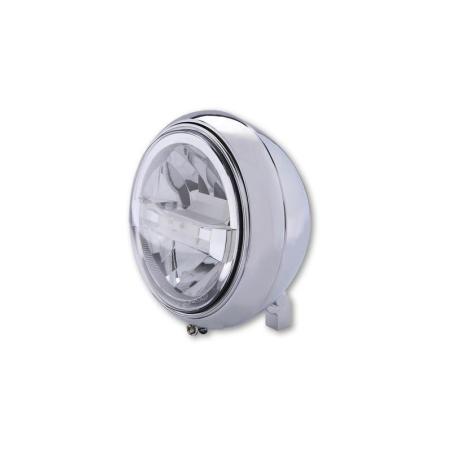

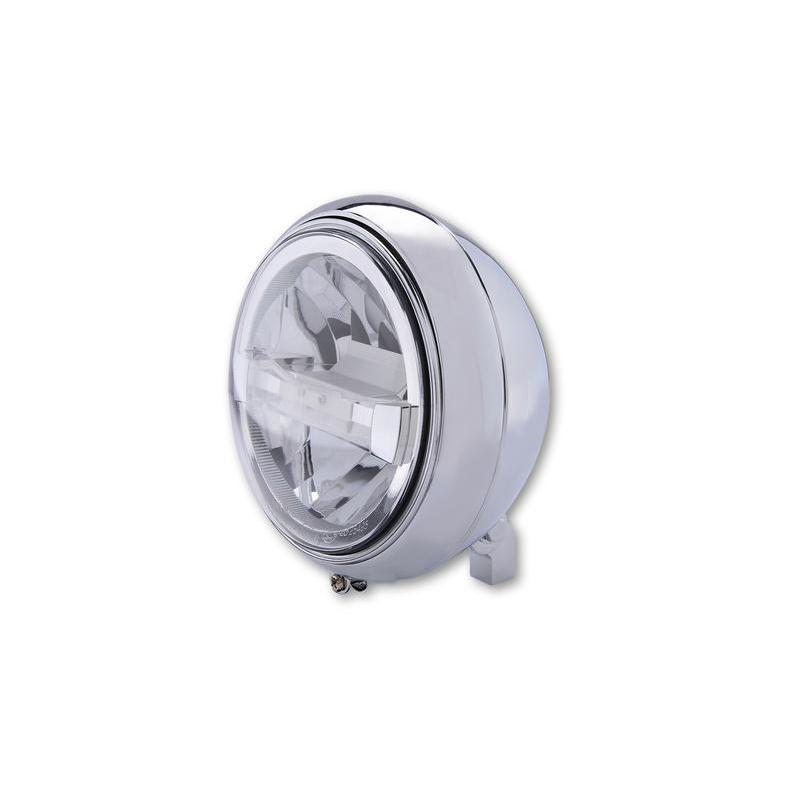

HIGHSIDER 223-234 : HIGHSIDER 7 LED Spotlight Yuma 2 Typ 4 With TFL, Chrome"

HIGHSIDER 7 inch LED spotlight Yuma 2 TYP 4, lower mounting, E-examined.

The special feature of the bulky 7 inch main headlamp is the LED light technology with daytime running light that is inside. The daytime running and position light are installed in a central strip, so thatoptically a very nice light image is created – the low beam shines above the bar, the high beam correspondingly below. The attachment at the bottom allows you to turn the headlight by turning the Mount the headlight closer or further away from the steering head. The reflector emits an asymmetrical luminous flux – approved for right-hand traffic only – E-approved.

Our Highlights – give your bike a distinctive style!

The unusual design and perfect technology of the HIGHSIDER headlight series make it a Highlight!

Features:

• Light source: LED


• High beam, low beam, parking light and TFL function


• Glass: clear


• Reflector: asymmetrical


• Housing: metal


• Fixing point: below M8

Dimensions:

• Housing diameter: 210 mm


• Depth: 150 mm


• Diameter headlamp insert: 178 mm

Connectors:

• Power consumption: 3 Pin connector


• Blue = low beam (+)


• Yellow = high beam (+)


• Black = mass (-)

daytime running light:

• Red = daytime running light (+)


• White = position light (+)


• Black = mass (-)
