HIGHSIDER 223-249 : HIGHSIDER Pecos Typ 10 - 5 3/4 inch LED Spotlight - Bottom Mount

HIGHSIDER 5 3/4 inch LED main headlight PECOS TYPE 10, E-approved

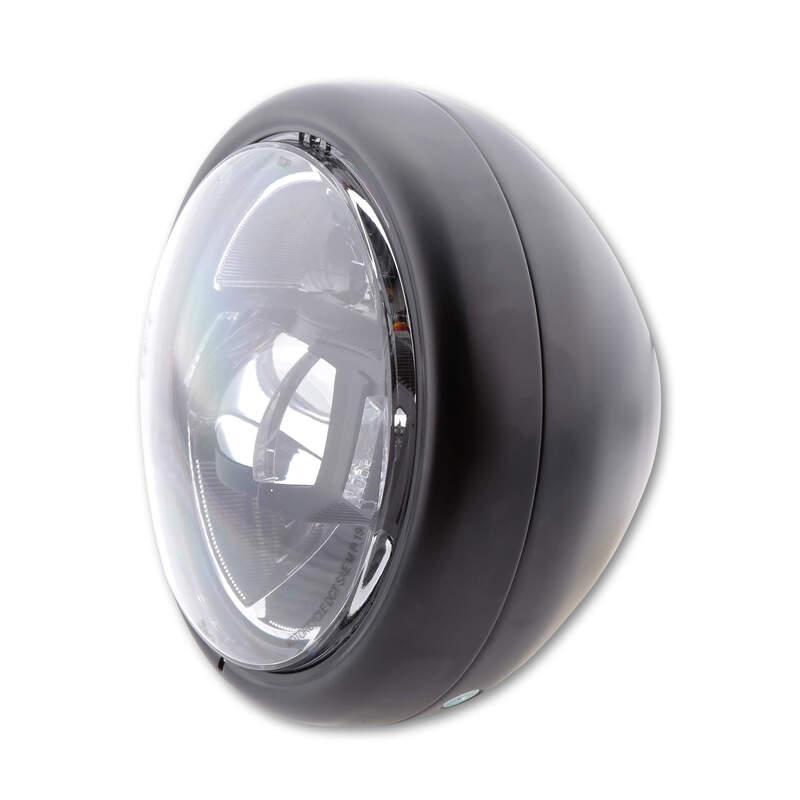

Round LED headlight with a black metal housing. The symmetrical insert TYPE 10 has a high beam, low beam and parking light function. The tested headlamp is also robust and easy to install.



Our highlights - give your bike a distinctive style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!



Dimensions:

Housing diameter outside/inside: 160/155 mm

Diameter headlight insert: 145 mm

Mounting: bottom or side



Connections:

(3 pin connector)

Red = low beam (+)

Yellow = high beam (+)

Brown = ground (-)

White = position light (+)



Notes:

- Bottom and center is low beam, high beam is on top

- Parking light is left and right



Scope of supply: 1 piece.
