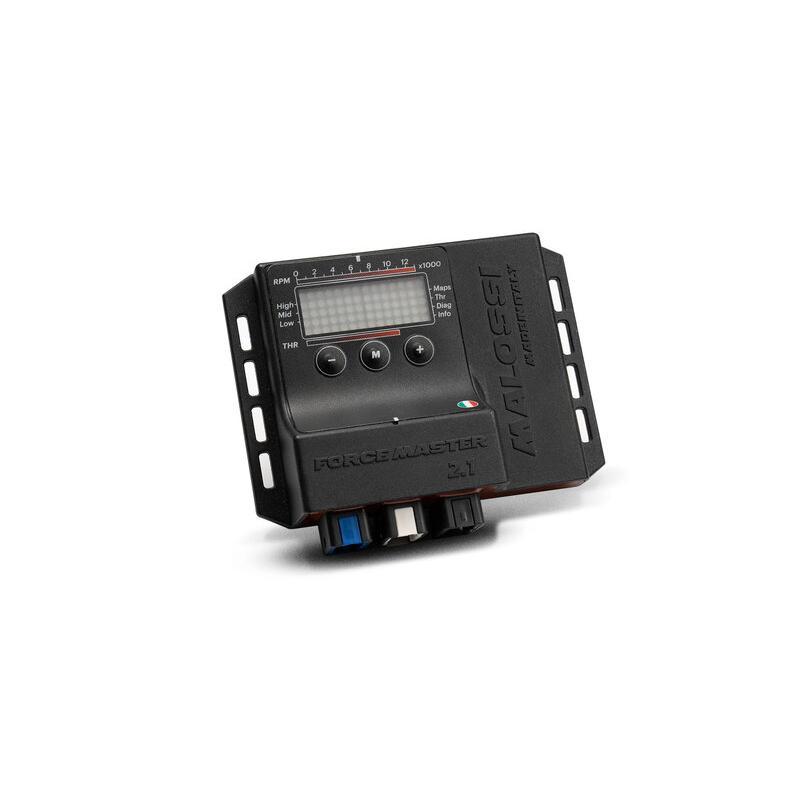

MALOSSI 5519537 : MALOSSI Electronic Ignition Box Force Master 2.1

Description

The Force Master 2.1 control unit has a completely new look and is much easier to configure. Making products more ergonomic and user-friendly has always been a Malossi goal: Force Master 2.1 is a contemporary, appropriate and powerful product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal complement for the vehicle's power management: without functional limitations, it allows the engine to move beyond the limit of the original rev limiter.

Technical details

• Carburettor power adjustment


• ± 14% LOW / HIGH / MEDIUM


• Rev limiter : +1,800 RPM


• Temperature range = -30°C +80°C


• Minimum operating voltage = +7V


• Maximum operating voltage = +16V


• Average current consumption <-200mA


• Protection class = IP65

4 different characteristic curves:

• Curve 0 : Original exhaust system, Malossi cylinder kit, original camshaft, original filter


• Curve 1 : Malossi with DB-killer exhaust system, Malossi cylinder kit, original camshaft, original filter


• Curve 2 : Malossi with DB-killer exhaust system, Malossi cylinder kit, Malossi camshaft, original filter


• Curve 3 : Malossi with DB-killer exhaust system, Malossi cylinder kit, Malossi camshaft, original filter.
