SHIN YO 240-087 : SHIN YO Toggle switch With Rubber Cap (M6)

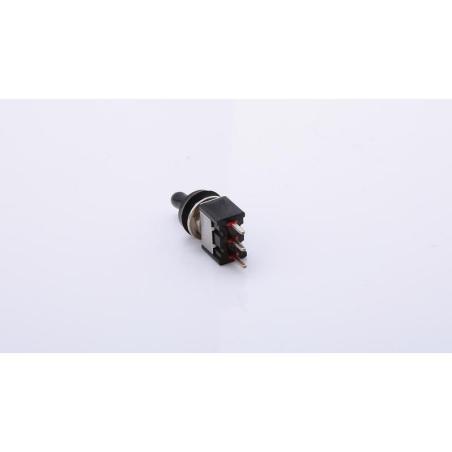

SHIN YO Toggle switch with rubber cap (M6)
For operation and control of all instruments. The buttons are of high quality, very robust and protected against vibrations.

Dimensions:
Width: 13 mm
Depth: 8 mm
Total length: 36 mm
Installation length 17 mm
Installation diameter 6 mm
Nut M6: 8 mm external, 5.5 mm internal

Connections:
ON = Input
OFF = Output

Technical Specifications:
Voltage: 125V AC /250V AC
Max. Current: 6A / 1,5A

Scope of supply: 1 piece
