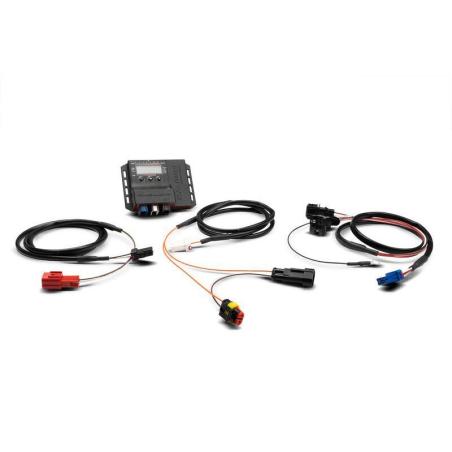

MALOSSI 5519412 : MALOSSI Force Master 2.1 Electronic Controler

Description

The Force Master 2.1 control unit has a completely new look and is much easier to configure. Making products more ergonomic and user-friendly has always been a goal of Malossi: Force Master 2.1 is a contemporary, appropriate and powerful product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, the Force Master 2. 1 is the ideal addition to the vehicle's power management system: without any functional restrictions, it allows the engine to be moved beyond the limits of the original rev limiter.

Technical details

• Adjustment of the carburettor output


• ± 14% LOW / HIGH / MEDIUM


• RPM limiter : +500 RPM depending on application


• Temperature range = -30°C +80°C


• Minimum operating voltage = +7V


• Maximum operating voltage = +16V


• Average current consumption <s-200mA


• Protection class = IP65


• 4 different maps:

  Curve 0 : original exhaust system, Malossi cylinder, original head, original camshaft, original filter

  Curves 1 to 3 : settings set to zero

Products that are intended exclusively for competitions at the designated locations in accordance with the regulations of the responsible sports authorities. We accept no liability for improper use.
