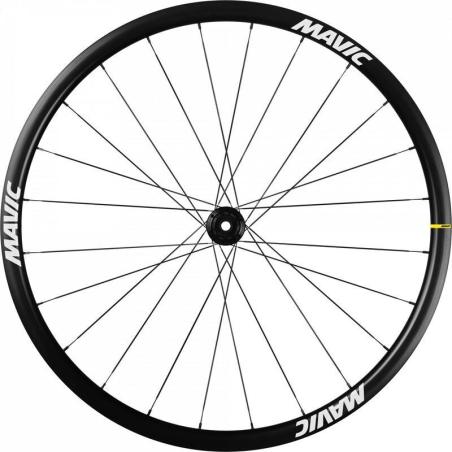

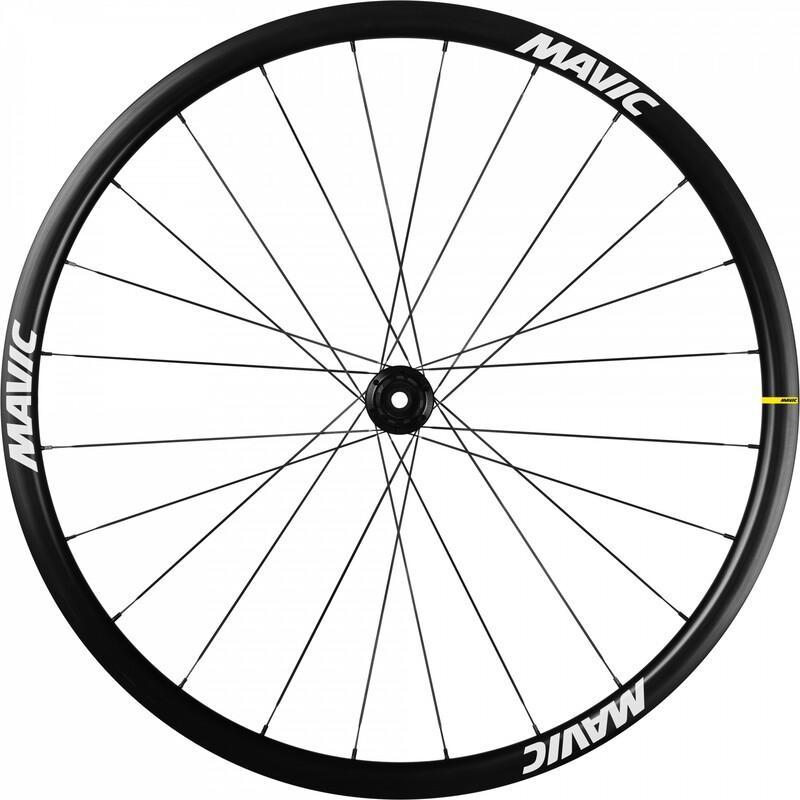

MAVIC LR4043100 : MAVIC Rear Wheel Ksyrium 30 Disc CL

Key Benefits

Light and aero rim?

30mm deep profile Optimized rim wall thickness Welded

Dynamic and agile

Double butted spokes Infinity hub design ID360 freewheel?

Refined tubeless technology helps you roll faster and smoother and is easy to set up and maintain?

Optimized UST rim bed shape Durable and perfectly airtight tape system

Weight:

• 1790 grams (Pair)

Specifications

Rims

• Material: Maxtal


• Height: 30 mm


• Drilling: traditional


• Disc brake specific profile


• Tire: UST Tubeless and tubetype


• Internal width: 19 mm


• ETRTO size: 622x19TC Road


• UST


• SUP

Spokes

• Material: steel


• Shape: straight pull, flat, double butted


• Nipples: steel, ABS


• Count: 24 front and rear


• Lacing: front and rear crossed 2, contactless

Hubs

• Front and rear bodies: aluminum


• Axle material: aluminum


• Front: Quick release and 12x100 through axle compatible


• Rear: Quick Release, 12x142 and 12x135 compatible


• Infinity Hub


• Instant Drive 360


• QRM Auto

Versions

• Disc standard: Center Lock (R) only


• Freewheel: Shimano/Sram or XD-Road

Delivered with

• Front QR adapters


• Rear QR adapters for Instant Drive 360


• UST valve and accessories


• Pre-installed tubeless rim tape


• User guide

Compatibility

• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies


• Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not


• compatible with 15mm through axles.


• Rear axle: 12mm thru axle, convertible to Quick Release with included adapters

Intended use

• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm


• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included


• Recommended tyre sizes: 25 to 32 mm


• Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
