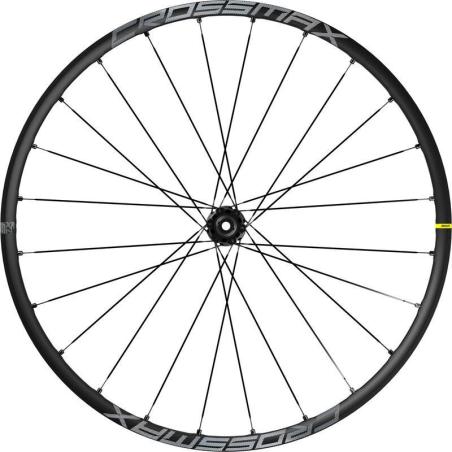

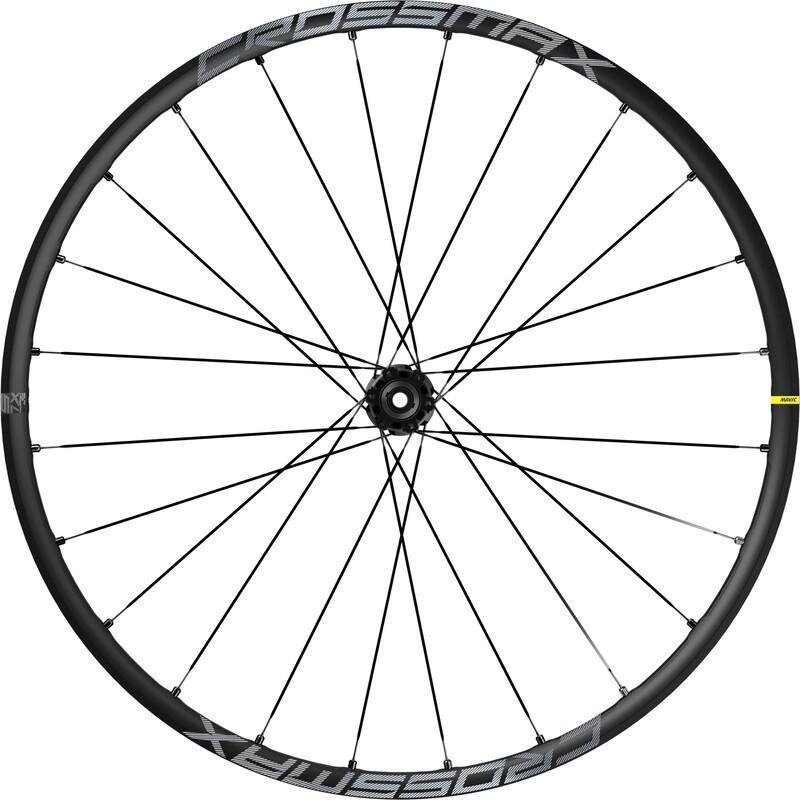

MAVIC R3708310 : MAVIC Rear Wheel Crossmax XL S 29'' IS

Key Benefits

Versatille, dynamic trail riding performance

Alloy rim performance

Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches. New lighter, stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration.

Most user-friendly tubeless system

Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.

More confidence and control on rugged terrain

30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.

Compatible with Center Lock Brake Disc

Weight:

• 1790 grams (Pair 29")


• 830 grams (Front 29")


• 960 grams (Rear 29")

Specifications

Rims

• Material: Maxtal


• Material: S6000 Aluminum


• Tire: UST Tubeless and tubetype


• Internal width: 30 mm


• Black Shield treatment (protects your rim against impacts and scratches)


• ETRTO size 29": 622x30TC


• Asymmetrical rim design



Spokes

• Material: steel


• Shape: straight pull, flat, double butted


• Nipples: aluminum, ABS


• Count: 24 front and rear


• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or center lock (R) brake rotors


• Infinity Hub


• Instant Drive 360


• Axles: Front 15X110 Boost ; Rear 12X148 Boost

Versions

• Disc standard : 6 Bolts or Center Lock (R)


• Hub width : Boost only (front 110, rear 148)


• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Delivered with

• UST valve and accessories


• Multifonction adjustment wrench (delivered with rear wheel)


• 2 replacement spokes with each wheel


• Fore adjustment wrench

Compatibility

• Freewheel: Shimano HG9, XD or Micro Spline


• Rear axle: 12x148 Boost thru axle


• Front axle: 15x110 Boost thru axle

Intended use

• ASTM CATEGORY 4 : ENDURO AND TRAIL RIDING


• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included


• Recommended tyre sizes: 60mm to 76mm (2.35" to 3.0")
