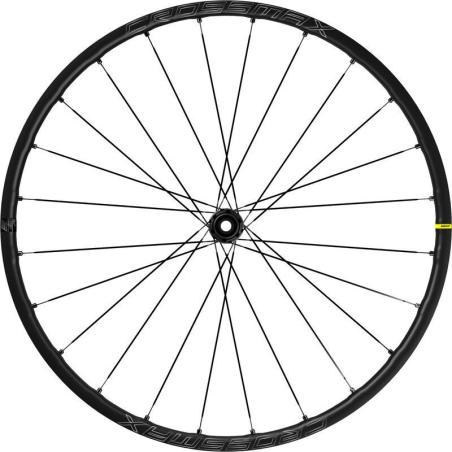

MAVIC F9044310 : MAVIC Front Wheel Crossmax SL S 29 IS

Key Benefits

Best in its class alloy XC wheelset

ISM4D rim machining reduces weight to close the gap to carbon rims without compromising strength. Lighter weight rims result in super low inertia and instant acceleration.

Increased traction and durability

25mm wide hookless rim profile optimized for lower tire pressures, resulting in improved grip in all conditions. Optimized for modern XC tubeless tires from 2.1 to 2.30'. Black Shield treatment protects rims against impacts and scratches.

User-friendly tubeless system

Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and durability of the rim.

Compatible with Center Lock Brake Disc

Weight:

• 1595 grams (Pair 29')


• 735 grams (Front 29')


• 860 grams (Rear 29')

Specifications

Rims

• Material: Maxtal


• Material: S6000 Aluminum


• Weight reduction: ISM 4D


• Tire: UST Tubeless and tubetype


• Internal width: 25 mm


• ETRTO size 29': 622x25TSS


• Hookless profile


• Black Shield treatment (protects your rim against impacts and scratches)


• Asymmetrical rim design


• Fore


• SUP

Spokes

• Material: steel


• Shape: straight pull, flat, double butted


• Nipples: Fore integrated aluminum


• Count: 24 front and rear


• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or center lock (R) brake rotors


• Axles: Front 15X110 Boost ; Rear 12X148 Boost


• Infinity Hub


• Instant Drive 360

Versions

• Disc standard : 6 Bolts or Center Lock (R)


• Hub width : Boost only (front 110, rear 148)


• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Delivered with

• UST valve and accessories


• Multifonction adjustment wrench (delivered with rear wheel)


• 2 replacement spokes with each wheel


• Fore adjustment wrench

Compatibility

• Freewheel: Shimano HG9, XD or Micro Spline


• Rear axle: 12x148 Boost thru axle


• Front axle: 15x110 Boost thru axle

Intended use

• ASTM CATEGORY 3 : CROSS COUNTRY


• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included


• Recommended tyre sizes: 50mm to 76mm (2.0' to 3.0')
