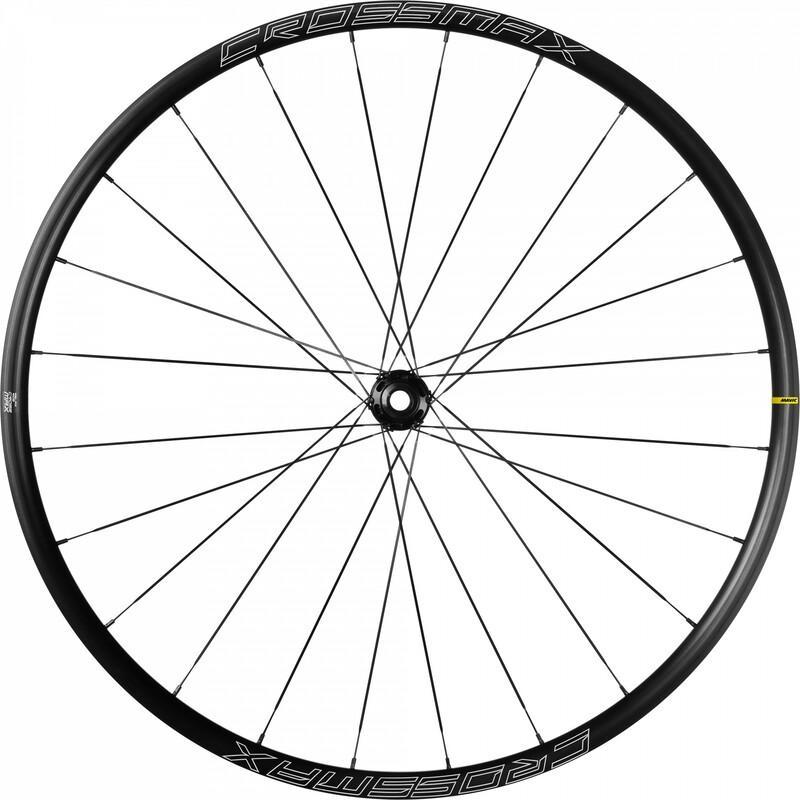

MAVIC F9267110 : MAVIC Front Wheel Crossmax 29 IS

Key Benefits

Light and durable

Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim

Dynamic and agile

24 double butted spokes Infinity hub platform ID360 double ratchet freewheel? system

Tubeless ready technology

A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

Compatible with Center Lock Brake Disc

Weight:

• 1770 grams (Pair 29')


• 820 grams (Front 29')


• 950 grams (Rear 29')

Specifications

Rims

• Material: Maxtal


• Drilling: traditional


• Valve hole diameter: 6.5 mm


• Internal width: 25 mm


• ETRTO size 29': 622x25TSS


• Use with Mavic Tubeless Tape


• Asymmetrical rim design


• UST Tubeless Ready


• SUP

Spokes

• Material: steel


• Shape: straight pull, flat, double butted


• Nipples: steel, ABS


• Count: 24 front and rear


• Lacing: front and rear crossed 2

Hubs

• Hub available with 6-bolt or center lock (R) brake rotors


• Axles: Front 15X110 Boost ; Rear 12X148 Boost


• Infinity Hub


• Instant Drive 360


• QRM Auto

Versions

• Disc standard : 6 Bolts or Center Lock (R)


• Hub width : Boost only (front 110, rear 148)


• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Delivered with

• UST valve and accessories


• Pre-installed tubeless rim tape


• 2 replacement spokes with each wheel

Compatibility

• Rear axle: 12x148 Boost thru axle

Intended use

• ASTM CATEGORY 3 : CROSS COUNTRY


• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included


• Recommended tyre sizes: 50mm to 76mm (2.0' to 3.0')
