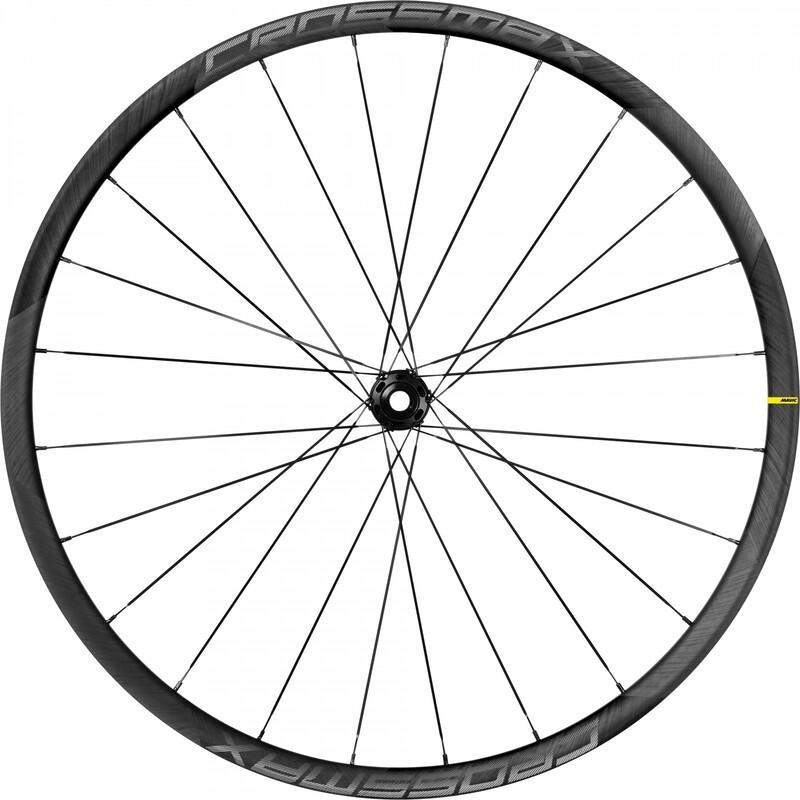

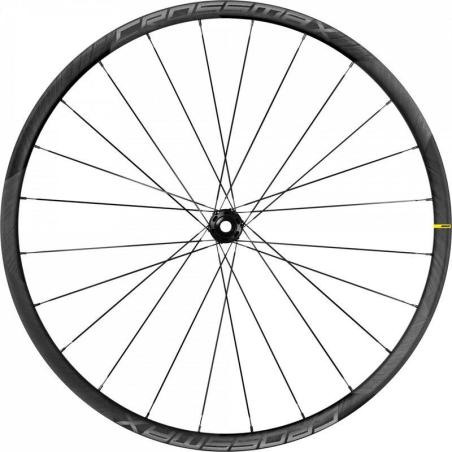

MAVIC F9297110 : MAVIC Front Wheel Crossmax carbone Xl R 29

Key Benefits

Versatille, dynamic trail riding performance

30mm wide reinforced UD2 carbon rim for efficient climbing plus overall strength for technical terrain.

Enhanced strength and smooth handling on rugged terrain

Low-profile rim shape provides frontal compliance and increased stability in rough sections. 30mm wide rim optimized for lower tire pressure and an ideal fit with modern trail tires from 2.3 to 2.6'. 24 straight-pull spokes for lateral stiffness and vertical compliance.

Efficient power transfer

Lighter, stiffer Infinity hubs with ultra-reliable ID360 dual ratchet freewheel system for instant acceleration

Compatible with Center Lock Brake Disc

Weight:

• 1595 grams (Pair 29')


• 735 grams (Front 29')


• 860 grams (Rear 29')

Specifications

Rims

• Drilling: traditional


• Internal width: 30 mm


• Hookless profile


• ETRTO size 29': 622x30TSS


• Asymmetrical rim design


• UST Tubeless Ready

Spokes

• Material: steel


• Shape: straight pull, flat, double butted


• Nipples: aluminum, ABS


• Count: 24 front and rear


• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or center lock (R) brake rotors


• Infinity Hub


• Instant Drive 360


• QRM Auto

Versions

• Disc standard : 6 Bolts or Center Lock (R)


• Hub width : Boost only (front 110, rear 148)


• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Delivered with

• UST valve and accessories


• Pre-installed tubeless rim tape


• Multifonction adjustment wrench (delivered with rear wheel)


• 2 replacement spokes with each wheel

Compatibility

• Rear axle: 12x148 Boost thru axle


• Front axle: 15x110 Boost thru axle


• Boost Axles : 15X110 ; 12X148

Intended use

• ASTM CATEGORY 4 : ENDURO AND TRAIL RIDING


• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included


• Recommended tyre sizes: 50mm to 76mm (2.0' to 3.0')
