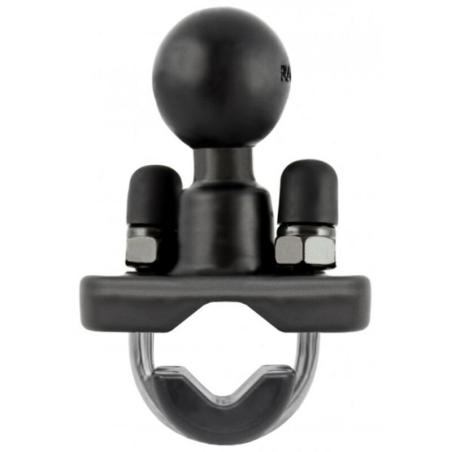

RAM RAM-B-231U : RAM MOUNTS U-Bolt Rail Base Ø 12.7mm to 25.4mm - B Size Ball

Ideal for motorcycle handlebars, this base consists of a 1' B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5' to 1' in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5'.

• Zinc-coated metal U-bolt base with 1' rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt


• Compatible with any B size RAM Mounts component; ball and socket technology allows for near-infinite adjustability


• Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments


• Backed by a lifetime warranty

HARDWARE INCLUDED

(1) 1/4'-20 U-Bolt for .5' - 1' Ø (12.7mm to 25.4mm) Rails
(2) 1/4'-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

Ø .5' - 1' (12.7mm to 25.4mm)

BALL/SOCKET SIZE

B Size Ball : 2.54 cm (1') in diameter (generally used to support a load of 0-2 kg )

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag
