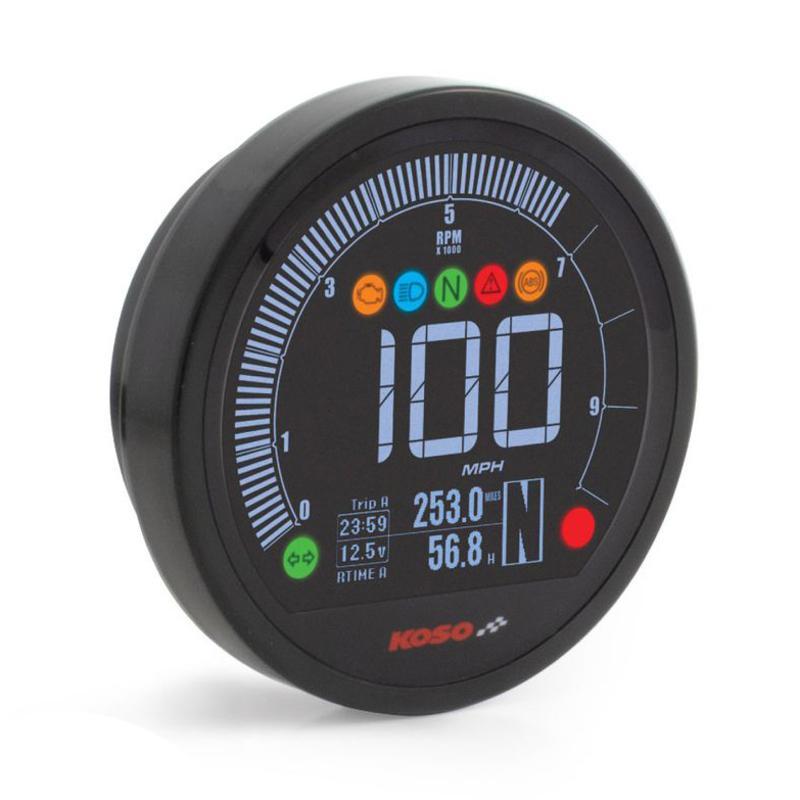

KOSO BA077001 : KOSO DL-04 Tachometer/Speedometer - BMW R Nine T

Vehicle-specific, digital rev counter DL-04 with speed display and that certain extra in black. Thanks to the matching plugs, a plug & play solution suitable for BMW R nineT®.

Product information DL-04 Meter:

Speedometer:

Display unit: 0 - 360 km/h (0-225 MPH) switchable

Display unit: 1 km/h (MPH)

Total odometer:

Display indication: 0 - 99.999 km (mile)

Display unit: 1 km (mile)

Trip meter:

Display: 0 - 9.999.9 km (mile)

Display unit: 0.1 km (mile)

Tripmeter O:

Range until oil change

Display indication: 0 - 9,999.9 km (mile)

Display unit: 0.1 km (mile)

Tripmeter A:

Range until service

Display: 0 - 9,999.9 km (mile)

Display unit: 0.1 km (mile)

Oil change interval:

Setting range: 3,000 - 16,000 km (300 - 10,000 mile)

Setting unit: 100 km (mile)

Gear indicator:

Display indication: N, 1 - 6

Maximum speed warning:

Setting range: 30 - 360 km/h (18 - 225 MPH)

Setting unit: 1 km/h (MPH)

Tachometer:

Display indication: 0 - 10,000 RPM / 0 -15,000 RPM

Tach warning light:

Setting range: 5,000 - 15,900 RPM

Setting unit: 100 RPM

Temperature:

Display reading: 0 - 250°C (32 - 482°F).

Temperature warning:

Setting range: 60 - 250°C (140 - 482°F)

Setting unit: 1°C (1°F)

Voltmeter:

Display indication: 8.0 - 18.0 V

Low voltage warning:

Setting range: 8.0 V - 12.5 V

Setting unit: 0.1 V

Operating hours counter:

Display unit: 0.0 - 9999.9 hours

Display unit: 0.1 hours (6 minutes)

Hour counter 1 - 2:

Display indication: 0.0 - 9999.9 hours

Display unit: 0.1 hours (6 minutes)

Low oil level indicator A:

Display indication: 0.0 - 9999.9 hours

Display unit: 0.1 hours (6 minutes)

Recording of maximum values:

Highest speed

Display unit: 0 - 360 km/h (0 - 225 MPH)

Highest speed

Display unit: 0 - 15,000 RPM

Highest temperature

Display indication: 0 - 250°C (32 - 482°F)

Highest voltage

Display indication: 8.0 - 18 V

Highest gear

Display indication: N / 1 - 6

Clock:

Setting range: 12/24 hour system

Background brightness:

Setting range: 1-5 (darkest) - 5-5 (brightest)

Voltage:

DC 12 V

Temperature range:

-10 - +60°C

Specifications:

JIS D 0203(S2)

Size:

Diameter 96 mm

Weight:

approx. 194.5 g

Warning lights:

Indicator (green)

Engine control light (yellow)

High beam (blue)

Neutral (green)

Warning light (red)

ABS (yellow)

Speed flash (red)

Scope of delivery: 1 piece
