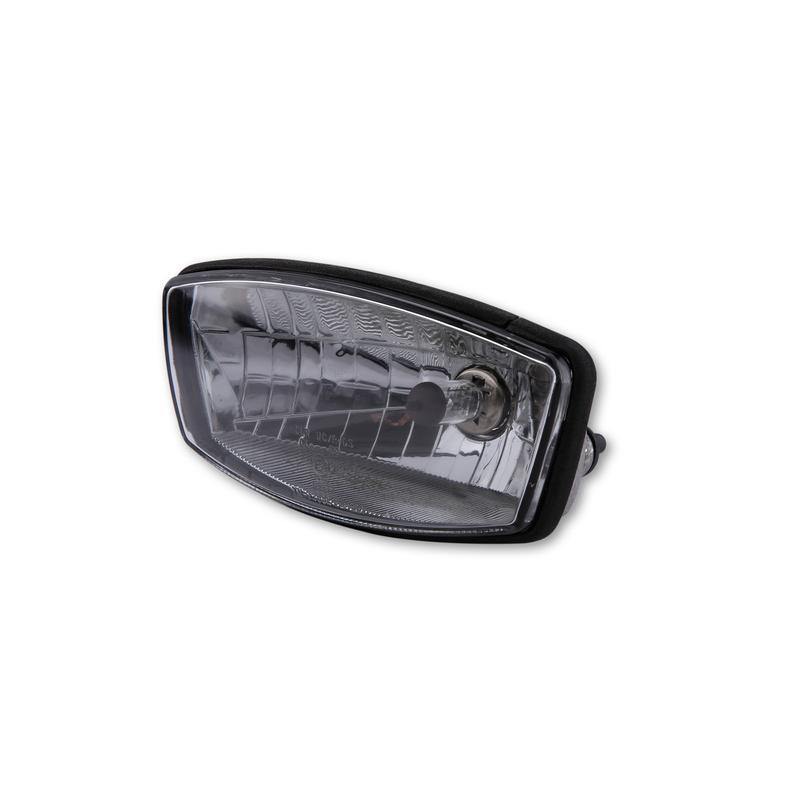

HIGHSIDER 226-155 : HIGHSIDER H4 Headlight Insert - Rectangular

HIGHSIDER H4 Insert with parking light function, 12 V 60/55W

Fits the HIGHSIDER OREGON headlight series with art. no. 21108612001, 1108612002, 1107998.

Symmetrical insert with parking light and clear glass. The reflector creates a symmetrical, bright light and ensures optimal perception of bikers by other road users, e-approved.

Dimensions:
A: 180 x 90 mm.
GA: 172 x 85 mm
I: 165 x 80 mm
R: 10 mm
T: max. 90 mm (unequal depths on all sides, therefore only the deepest point measured above).

Lamps: H4, 12 V 60/55W

Connections:
Black cable = ground (-)
Yellow cable = low beam (+)
Blue cable = high beam (+)
Connections parking light function:
Black cable = ground (-)
Green cable = parking light (+)

Scope of supply: 1 piece

Notes:
Symmetrical reflector - also approved for left-hand traffic.
This application is also available complete with housing: Art.-No. 1108612001, 1108612002, 1107998.
